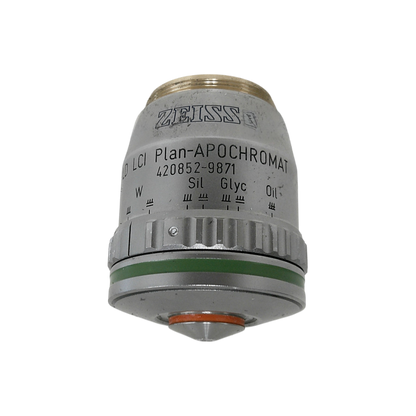

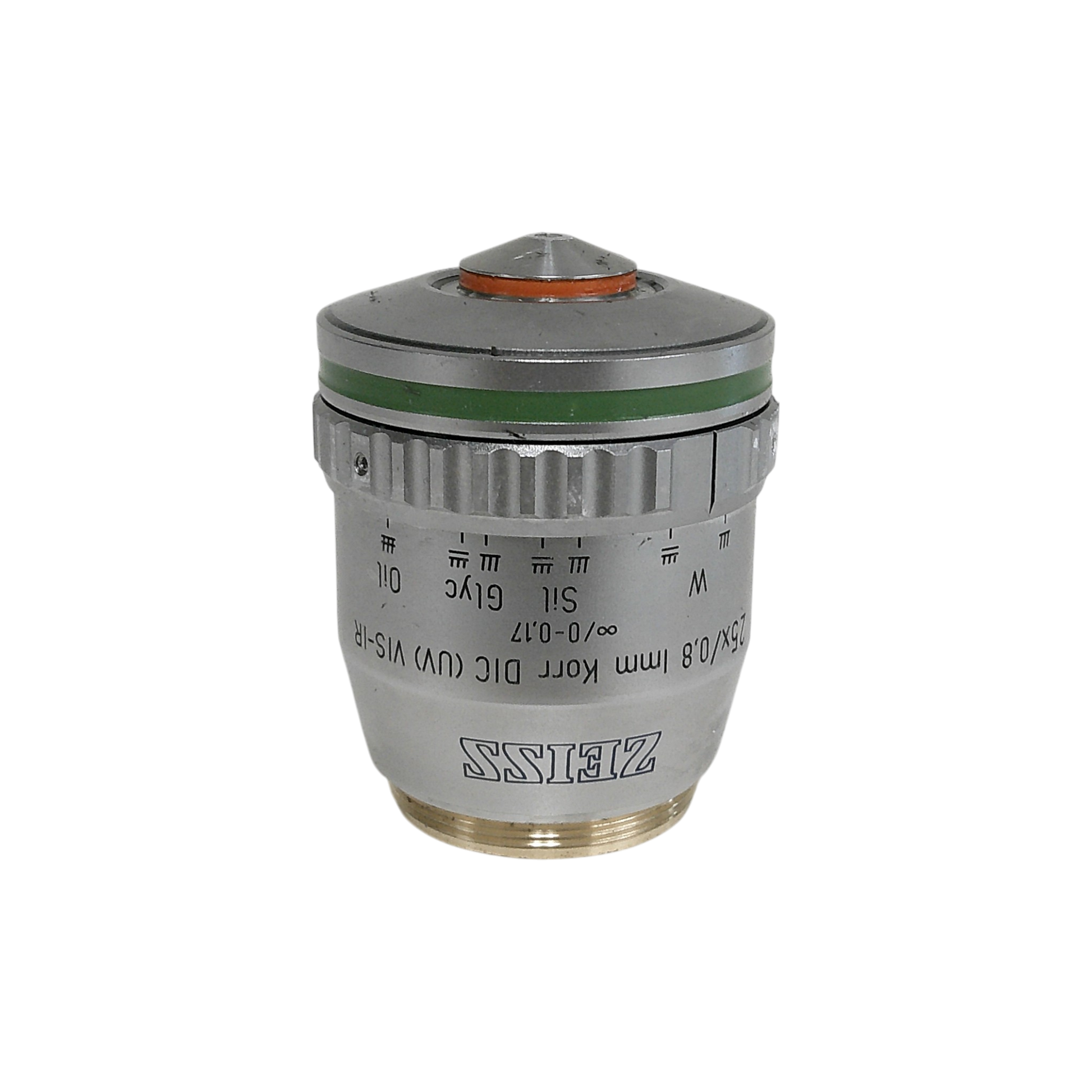

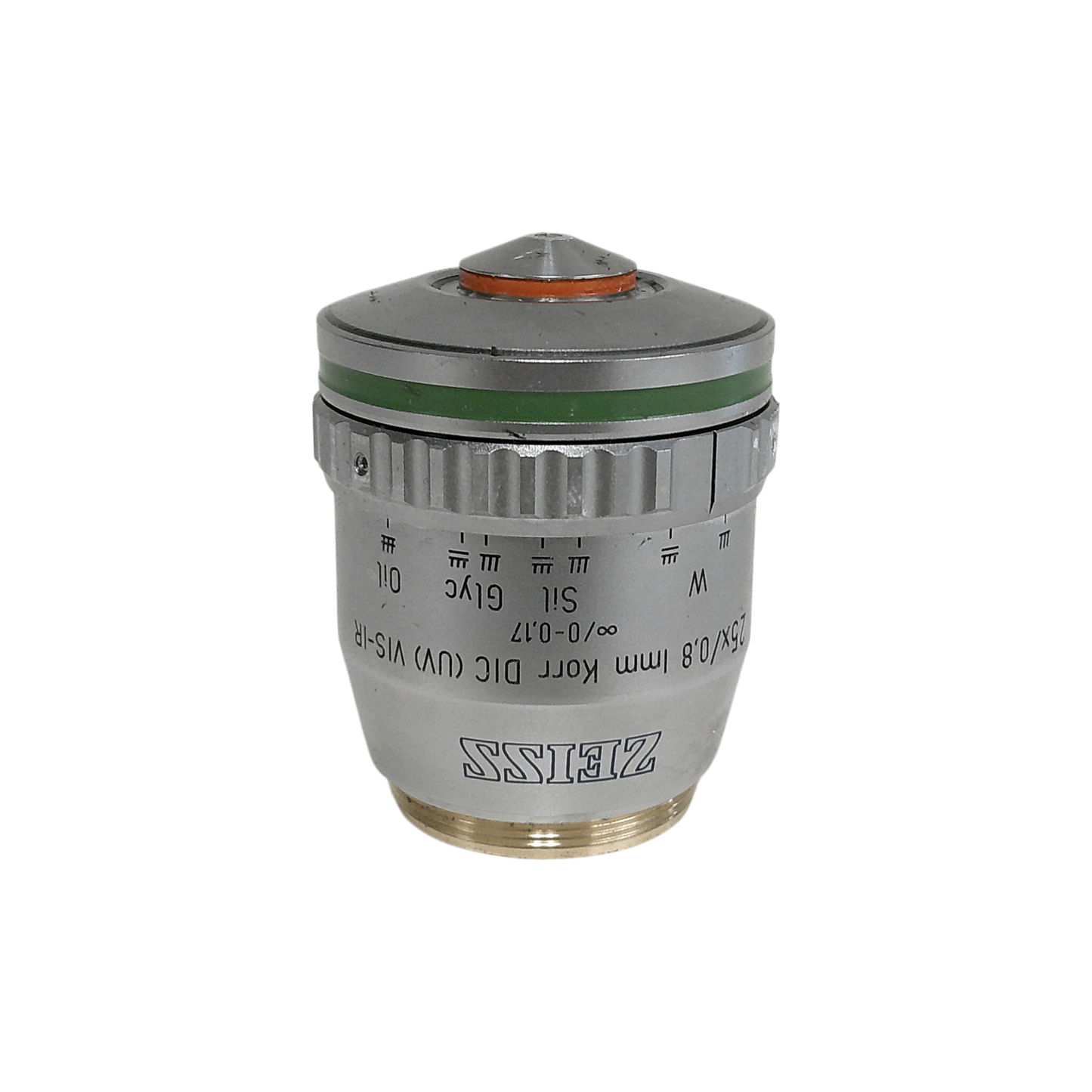

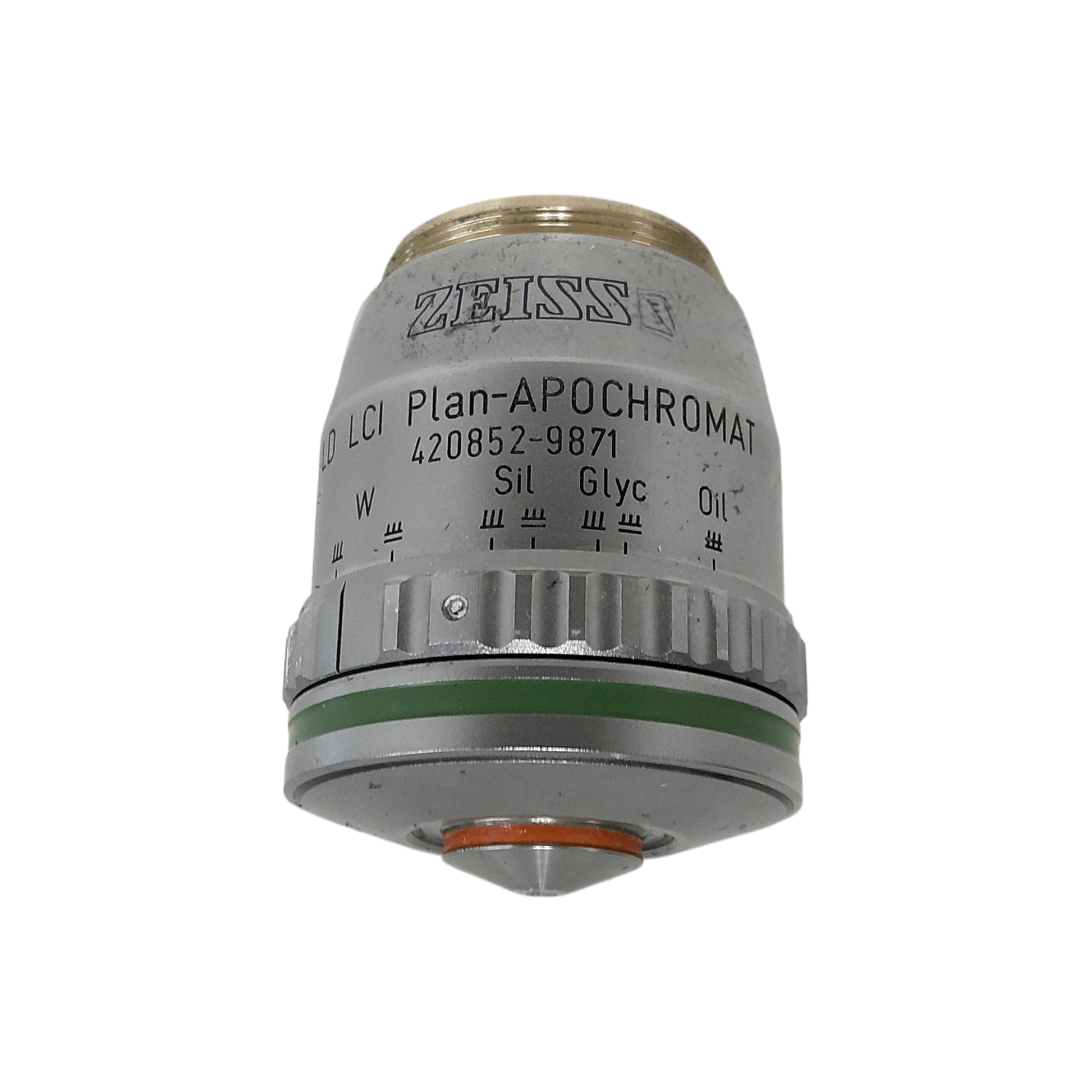

Zeiss LD LCI Plan-Apochromat 25x/0.8 Imm Korr DIC (UV) VIS-IR M27 Thread Size Microscope Objective

Zeiss LD LCI Plan-Apochromat 25x/0.8 Imm Korr DIC (UV) VIS-IR M27 Thread Size Objective – 420852-9871 (Used/Refurbished)

The Zeiss LD LCI Plan-Apochromat 25x/0.8 Imm Korr DIC (UV) VIS-IR is a high-performance multi-immersion objective designed for advanced live-cell imaging, fluorescence, and confocal microscopy. With a numerical aperture (NA) of 0.8 and a free working distance of 0.57 mm, this objective provides exceptional resolution, contrast, and flexibility across ultraviolet (UV), visible (VIS), and infrared (IR) spectra.

Condition

• Used / Refurbished
• (This product has been inspected and verified to meet manufacturer specifications.)

Key Features

• Magnification: 25x
• Numerical Aperture (NA): 0.8
• Free Working Distance: 0.57 mm (at 0.17 mm cover glass thickness)
• Cover Glass Thickness Range: 0 – 0.17 mm
• Thread Type: M27x0.75
• Multi-Immersion Compatibility: Water, silicone oil, glycerine, and standard oil
• Apochromatic (APO) Correction: Provides superior color correction across UV, visible, and IR spectra
• Correction Collar: Allows adjustment for varying cover glass thicknesses
• Infinity Color Corrected System (ICS): Ensures compatibility with modern Zeiss microscopes

Applications

• Live-cell imaging
• Fluorescence microscopy
• Confocal microscopy
• Neuroscience research
• Developmental biology

Specifications
