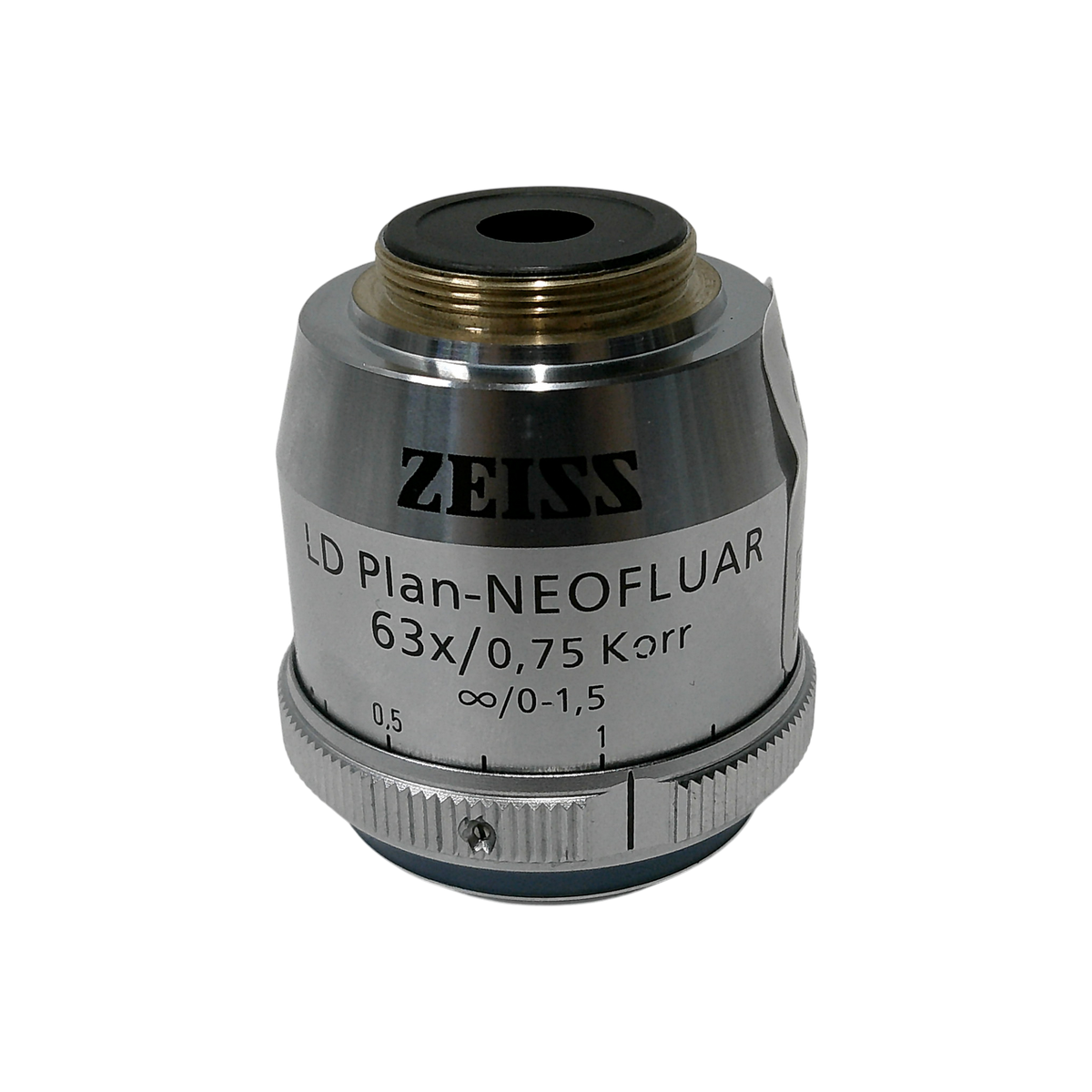

Zeiss LD Plan-NEOFLAUR 63x/0.75 Korr RMS Thread Size Microscope Objective

Zeiss LD Plan-Neofluar 63x/0.75 Korr Microscope Objective, RMS (W0.8) Thread | 441370-9970

The Zeiss LD Plan-Neofluar 63x/0.75 Korr (441370-9970) is a long working distance, semi-apochromatic dry objective from Zeiss's ICS (Infinity Color-Corrected System) line, designed for inverted research microscopes such as the Axiovert 200. Its correction collar adjusts for cover glass and vessel bottom thicknesses from 0 to 1.5mm, allowing high-magnification imaging through culture dishes, flasks, and well plates while maintaining sharp, well-corrected images. Combining the excellent fluorescence performance of the Plan-Neofluar family with a working distance of up to 2.2mm, it is a versatile choice for live-cell imaging at 63x.

Condition

Condition: Refurbished/Used (This product has been inspected and verified to meet manufacturer specifications)

Key Features

• Long working distance (LD) design: 2.2mm at 0mm cover glass, 1.2mm at 1.5mm
• Correction collar (Korr) for cover glass and vessel bottoms from 0 to 1.5mm
• Semi-apochromatic Plan-Neofluar correction for flat-field, color-accurate imaging
• Excellent fluorescence performance
• Image through dishes, flasks, and well plates at 63x
• Infinity-corrected ICS optics
• 23mm field of view
• W0.8 (RMS) thread, 45.06mm parfocal length

Applications

• Live-cell imaging through culture vessels
• Fluorescence microscopy on inverted microscopes
• Cell culture and well plate imaging
• DIC imaging (with appropriate DIC slider)
• High-magnification imaging through thick substrates

Specifications
