PRODUCT ID:51810f

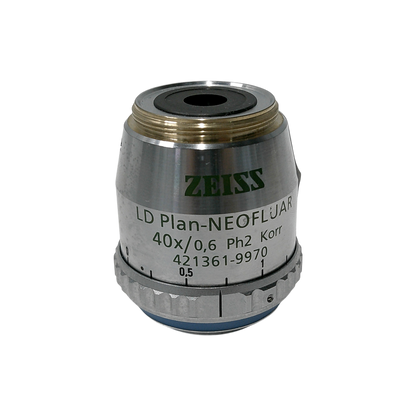

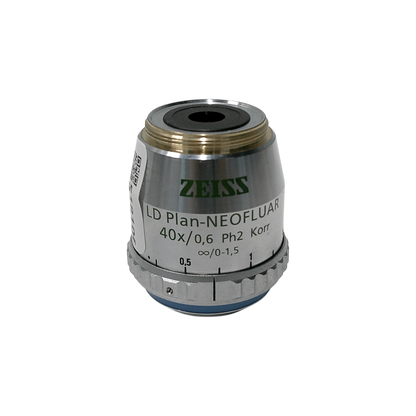

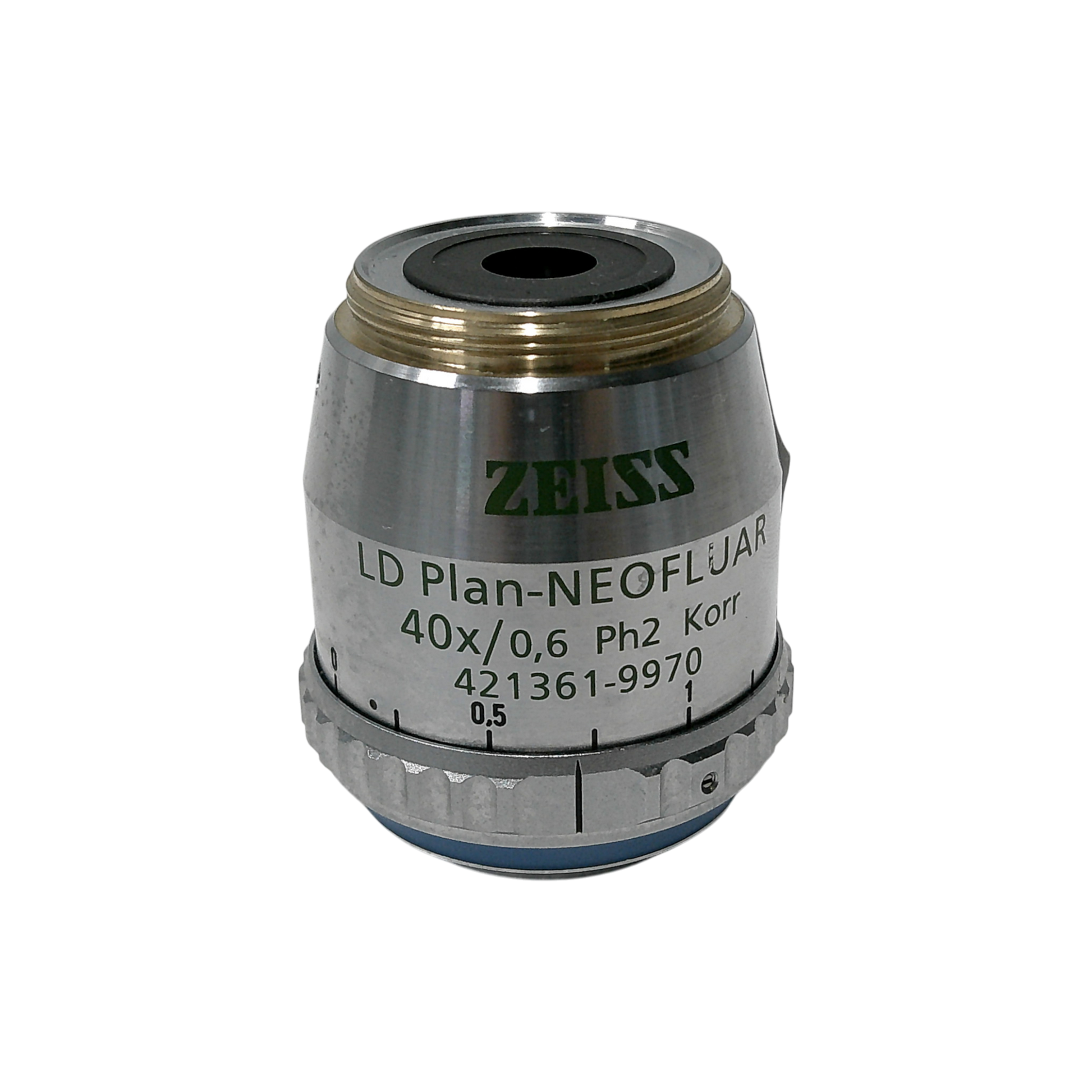

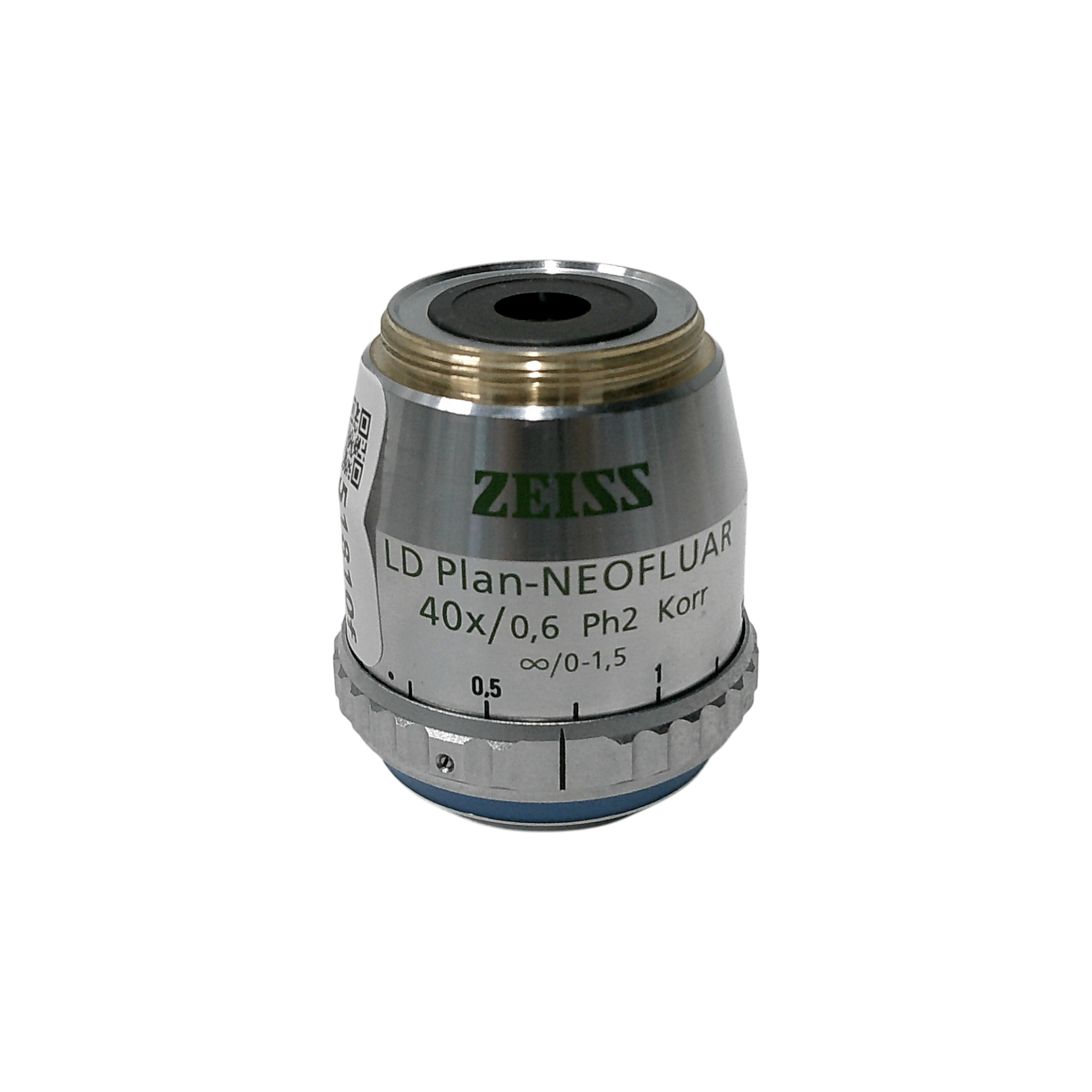

Zeiss LD Plan-NEOFLUAR Ph2 40x/0.6 Korr M27 Thread Size Microscope Objective

Zeiss LD Plan-NEOFLUAR Ph2 40x/0.6 Korr M27 Thread Size Microscope Objective

$2,350.00 USD
$2,350.00 USD
Sale Sold out
Shipping calculated at checkout.

Zeiss LD Plan-NEOFLUAR Ph2 40x/0.6 Korr Microscope Objective | 421361-9970

Designed for precision and flexibility, the Zeiss LD Plan-NEOFLUAR Ph2 40x/0.6 Korr objective offers long working distance and correction collar functionality for thick specimens or variable cover glass thickness. Its phase contrast Ph2 ring makes it ideal for observing unstained live cells with high clarity and minimal distortion.

Condition

Refurbished/Used (This product has been inspected and verified to meet manufacturer specifications)

Key Features

  • Long working distance design for use with plastic dishes and thick samples
  • Correction collar adjusts for cover glass thickness variations (0.0–1.5 mm)
  • Integrated Ph2 phase ring for optimal contrast in live-cell imaging
  • Flat field and color-corrected across the full image plane
  • Suitable for fluorescence and transmitted light techniques

Applications

  • Live-cell imaging
  • Tissue culture and cell biology
  • Phase contrast microscopy
  • Fluorescence and transmitted light microscopy

Specifications

Specification Detail
Manufacturer Zeiss
Model LD Plan-NEOFLUAR Ph2 40x/0.6 Korr
Catalog Number 421361-9970
Magnification 40x
Numerical Aperture (NA) 0.60
Optical Correction Plan-NEOFLUAR
Thread Type M27 x 0.75
Cover Glass Correction 0.0 – 1.5 mm (adjustable)
Working Distance 2.4 mm
Immersion Medium Dry
Contrast Method Phase Contrast (Ph2)

Additional Details

  • Manufacturer: Zeiss
  • Model:
  • Catalog Number: 51810f
  • Serial Number:
  • Condition: Used
