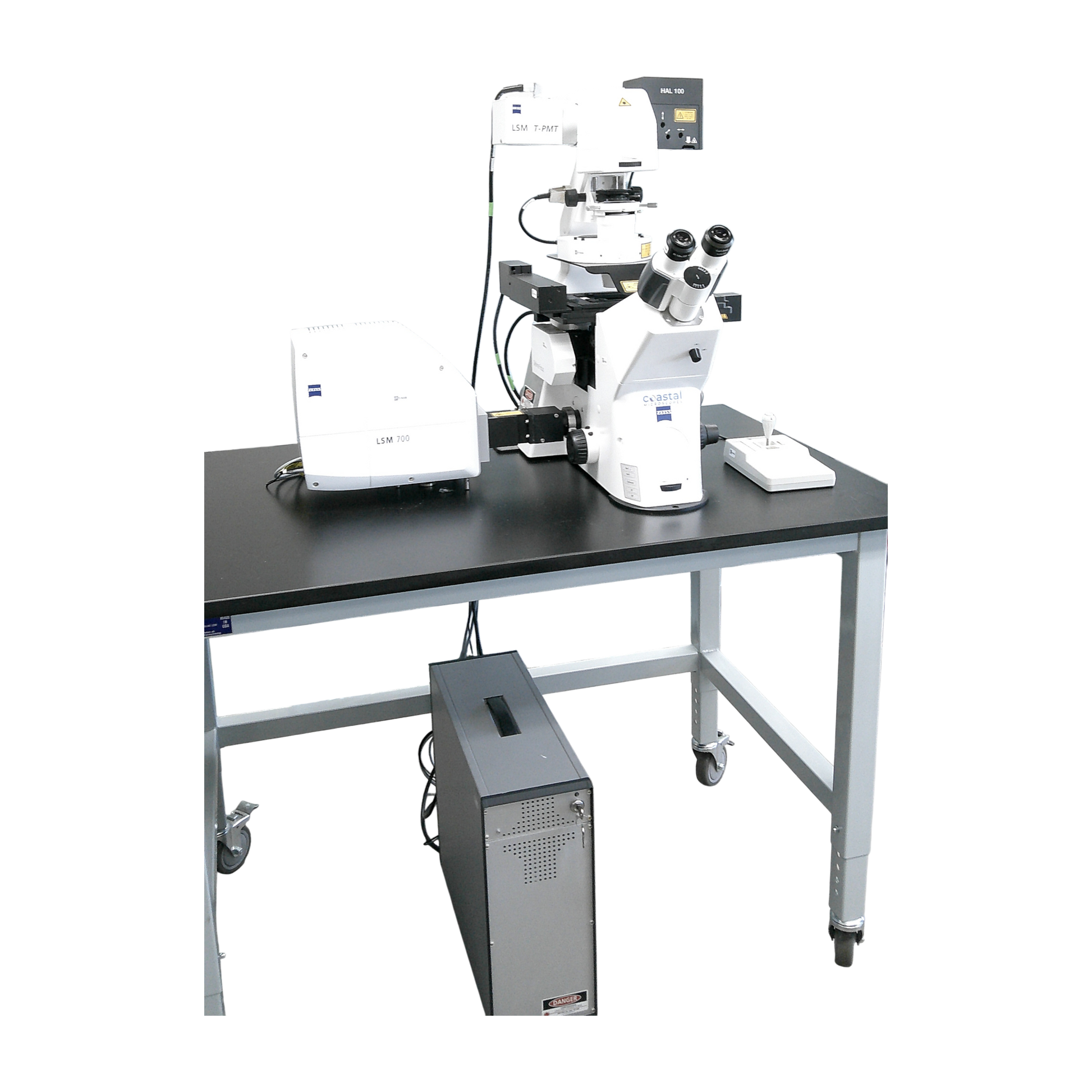

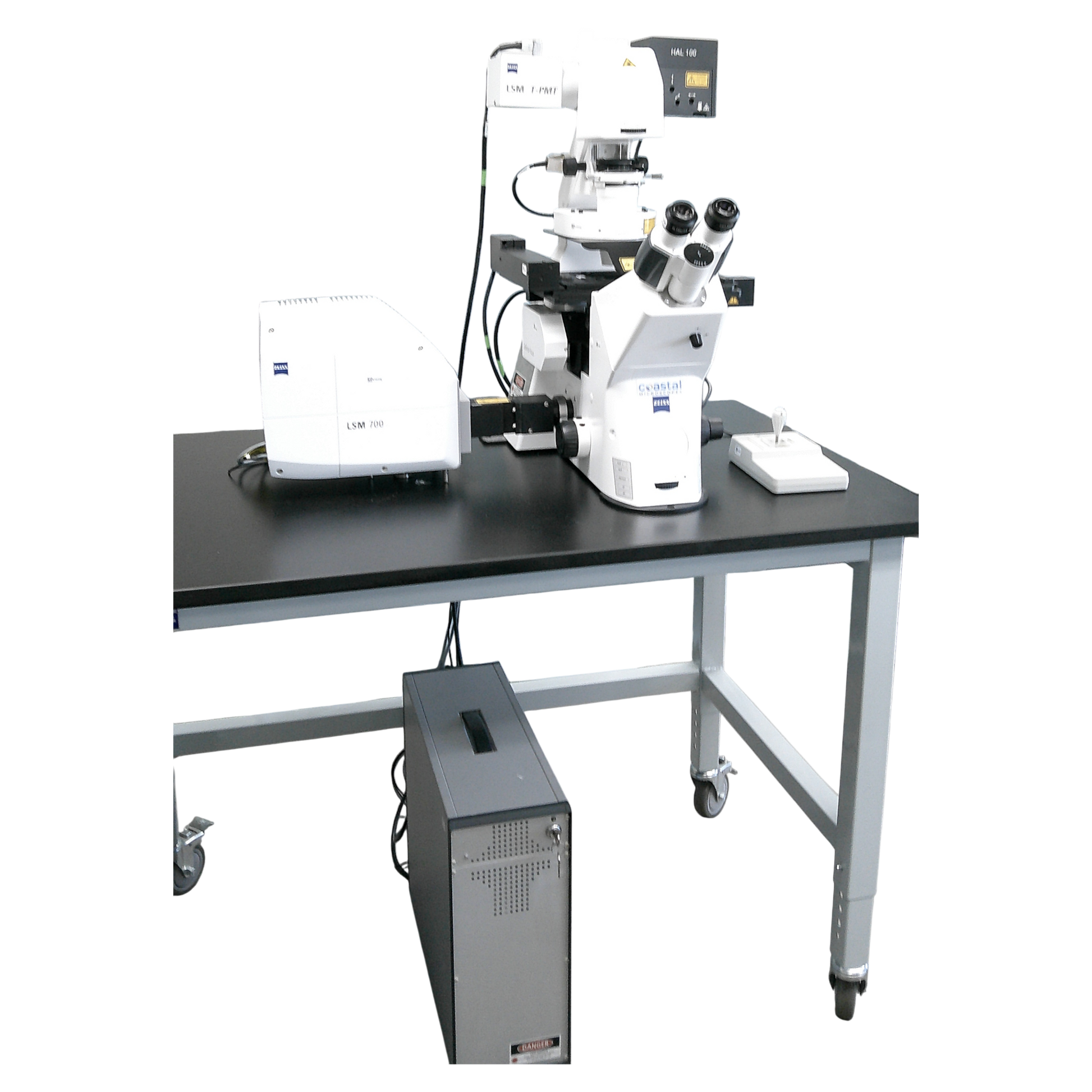

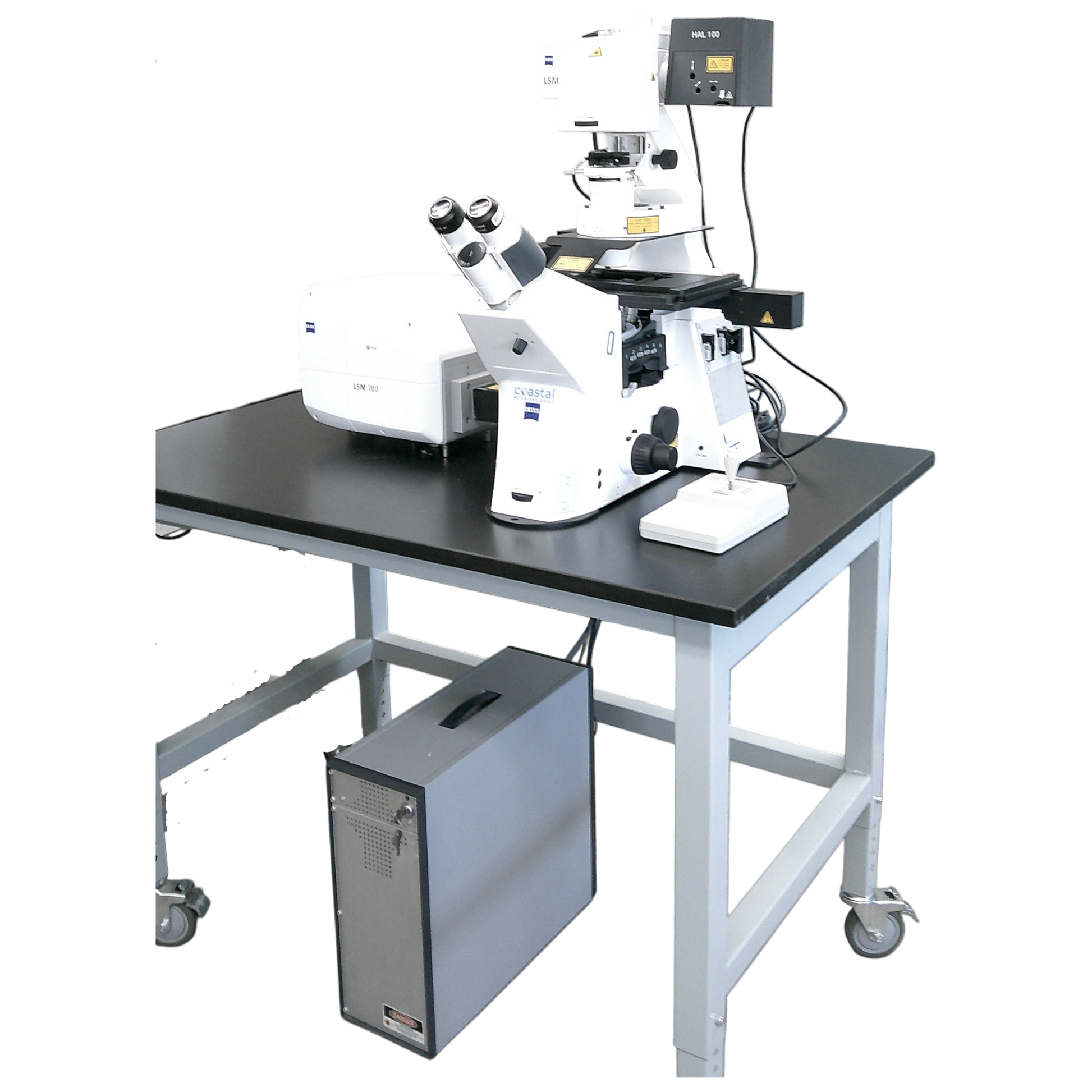

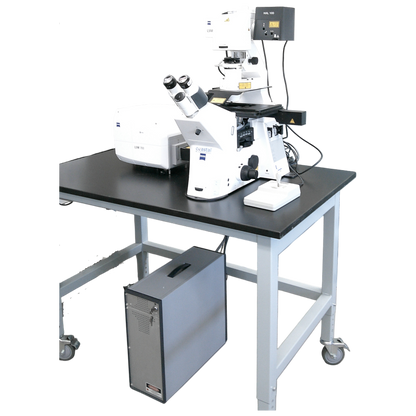

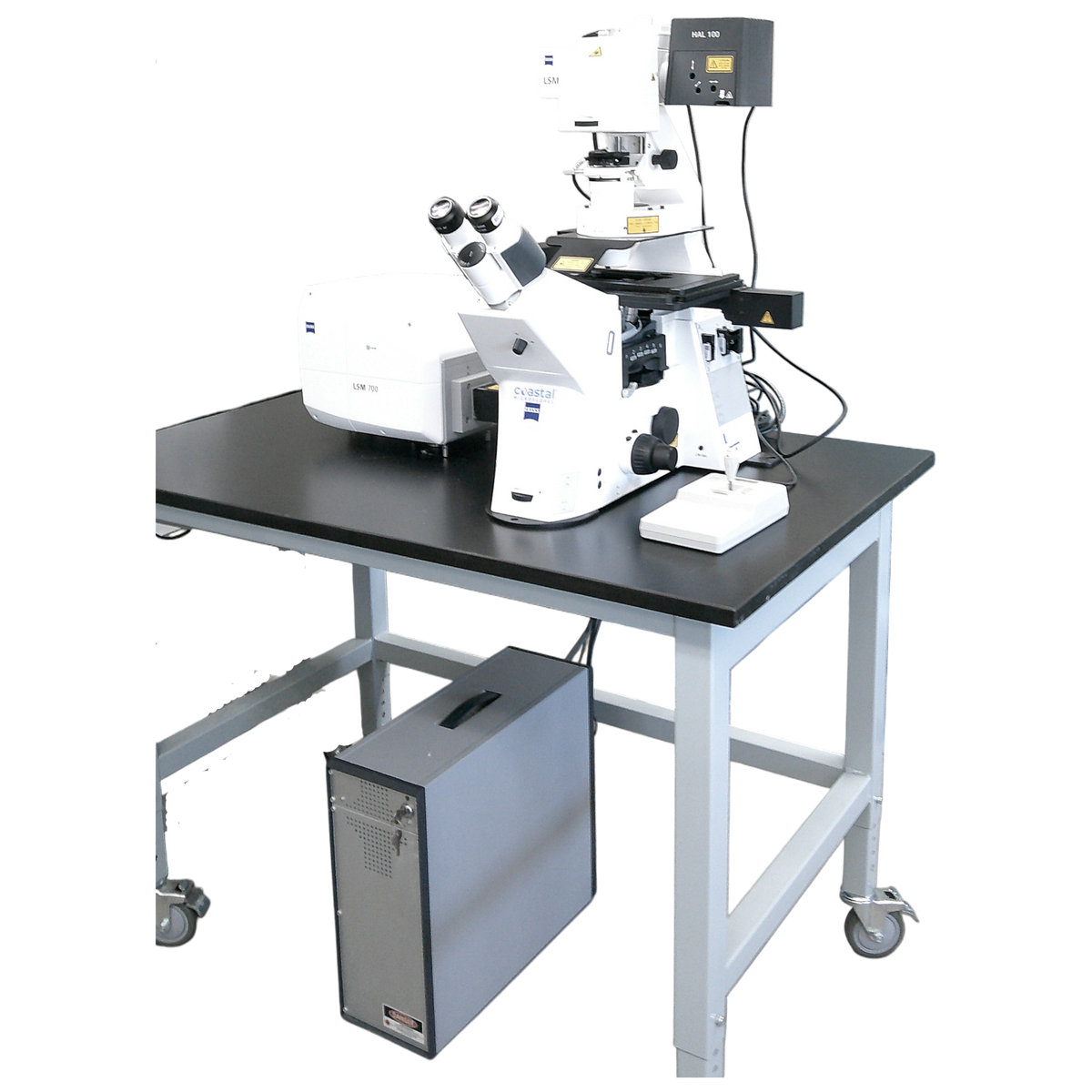

Zeiss LSM 700 Laser Scanning Confocal w/ Axio Observer Z1 w/ Optional Definite Focus (1, 2, or 3) Confocal

Zeiss LSM 700 Laser Scanning Confocal with Axio Observer Z1 Inverted Microscope, Optional Definite Focus (1 or 2)

The Zeiss LSM 700 is a high-performance laser scanning confocal microscope designed for advanced fluorescence imaging, live-cell studies, and high-resolution optical sectioning. Built on the Zeiss Axio Observer Z1 (Model 431007-9902-000), a fully motorized inverted research microscope with automated light path selection, this system is well suited for live-cell imaging, time-lapse experiments, and multi-color confocal fluorescence. Optional Definite Focus compensates for focal drift to keep long-term experiments stable.

Condition

Condition: Refurbished/Used (This product has been inspected and verified to meet manufacturer specifications)

Included Items

• Zeiss LSM 700 Laser Scanning Confocal Scan Head
• Zeiss Axio Observer Z1 Motorized Inverted Microscope (Model 431007-9902-000)
• Solid State Laser Module with 405, 488, 555, and 639nm Laser Lines
• (1) PMT Detector, optimized for low-light fluorescence applications
• Motorized Focus and Z-Control
• Motorized Condenser and Light Path Selection
• Nosepiece: 6-Position Motorized Coded Nosepiece
• Motorized Fluorescence Filter Cube Turret
• (3) Filter Cubes of your choice (Additional Cubes Available for purchase)
• Workstation with Zeiss ZEN Software and License
• Monitor

Available Options

• Objectives (Please discuss your application or preferred configuration with our team. We have a full suite of options available.)
• Stage: Motorized and Manual options available
• Zeiss Definite Focus Autofocus System (Definite Focus.1 or .2)
• Environmental Incubation System
• Optical Table: New and Refurbished options available

Illuminator (Choose One):

• 100w Mercury w/ Power Supply
• Upgrade to: Used Metal Halide
• Upgrade to: New X-Cite 110LED System with Adapter. Includes: X-Cite 110LED, speedDIAL remote, 3mm x 1500mm Liquid Light Guide
• Upgrade to: New X-Cite mini+ System. Includes: LED head, miniCUBE controller, speedDIAL remote, Microscope Coupling Flange
• Upgrade to: New X-Cite XYLIS II, XT730S w/1.5m LLG. Includes: X-Cite XYLIS (XT720S), speedDIAL remote, 3mm x 1500mm Liquid Light Guide

Key Features

• High-resolution confocal imaging with precise optical sectioning for 3D fluorescence
• Four-line solid-state laser excitation: 405, 488, 555, and 639nm
• Sensitive PMT detection with sequential multi-color acquisition
• Fully motorized Axio Observer Z1 inverted stand with automated light path, condenser, and filter turret
• Optional Definite Focus.1 or .2 for drift-free, long-term time-lapse imaging
• Automated Z-stacking and 3D reconstruction
• Zeiss ZEN software with license, workstation and monitor included
• Durable, modular design built for long-term use in research and clinical environments

Applications

• Live-cell imaging and long-term time-lapse microscopy
• High-resolution 3D optical sectioning
• Multi-color fluorescence imaging (DAPI, GFP, RFP/Cy3, far-red)
• Immunofluorescence and colocalization studies
• Oncology and cancer research
• Neuroscience and developmental biology
• Pharmaceutical and drug discovery applications
• Microbiology and virology research

Specifications

Configuration shown is for demonstration purposes. Contact us to discuss your application and needs for a customized quote.
