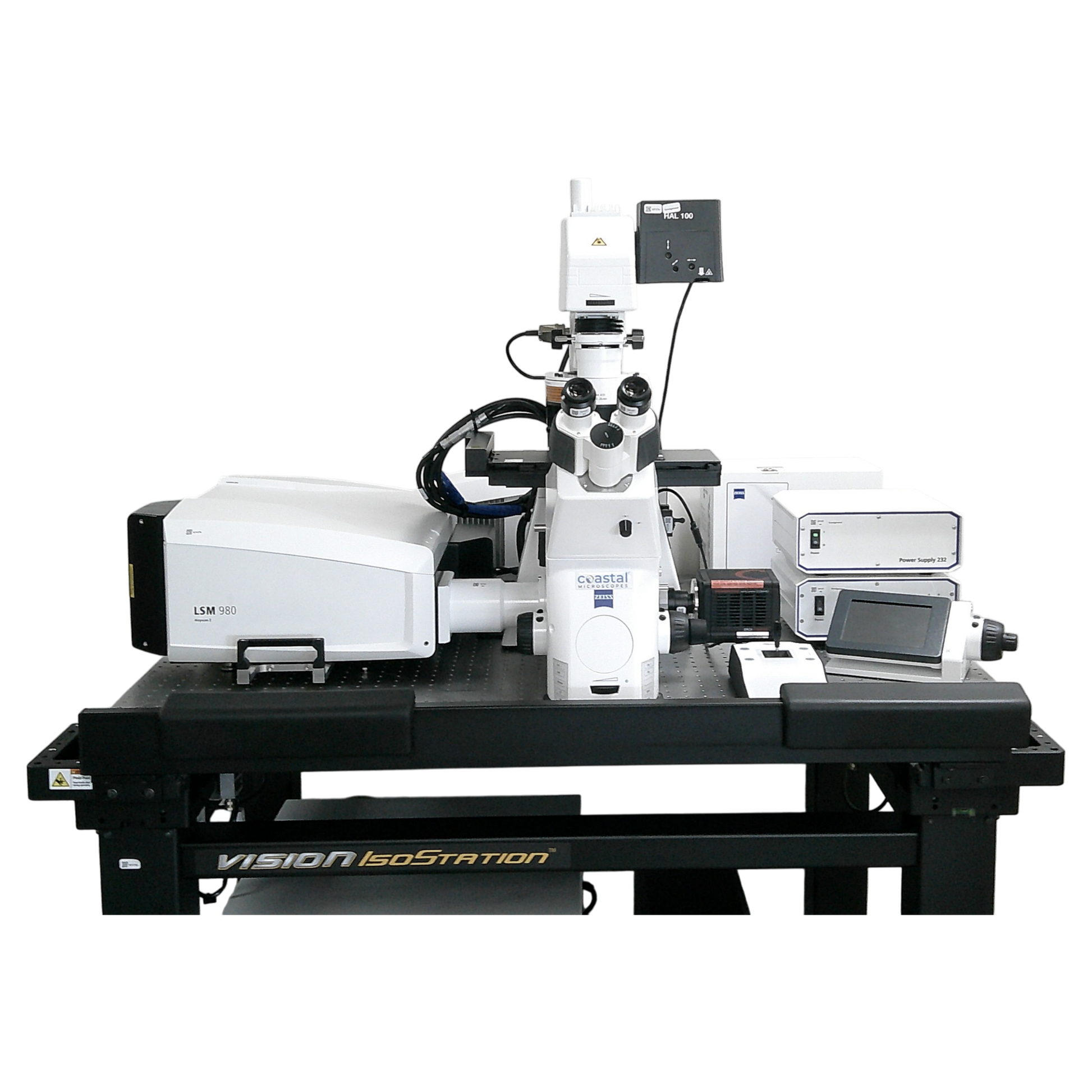

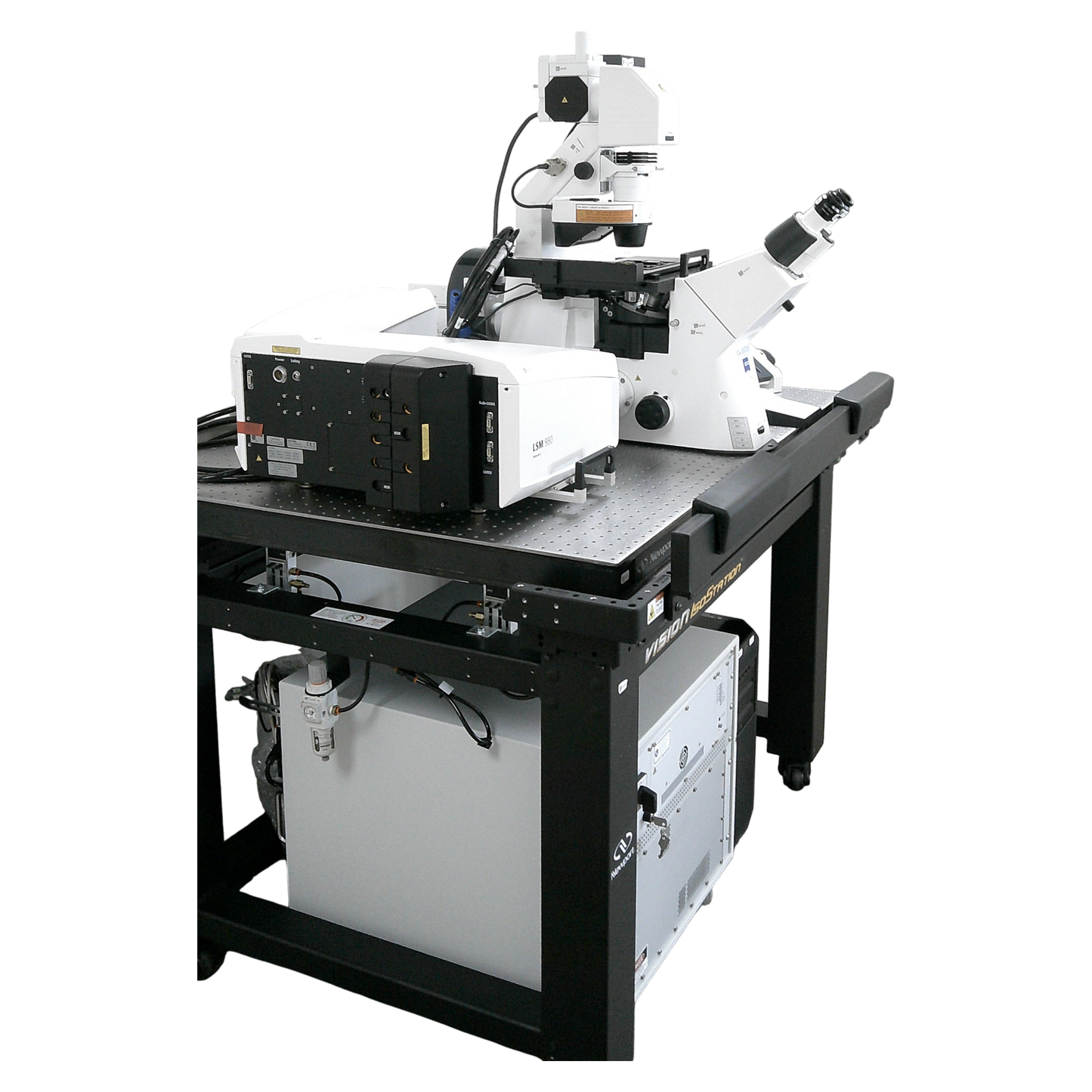

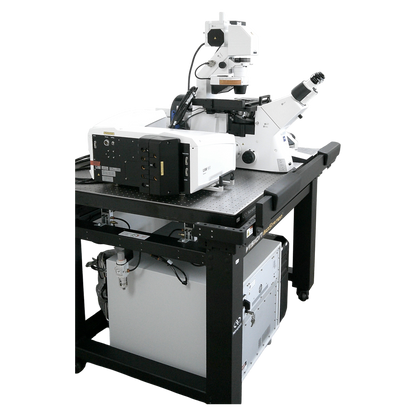

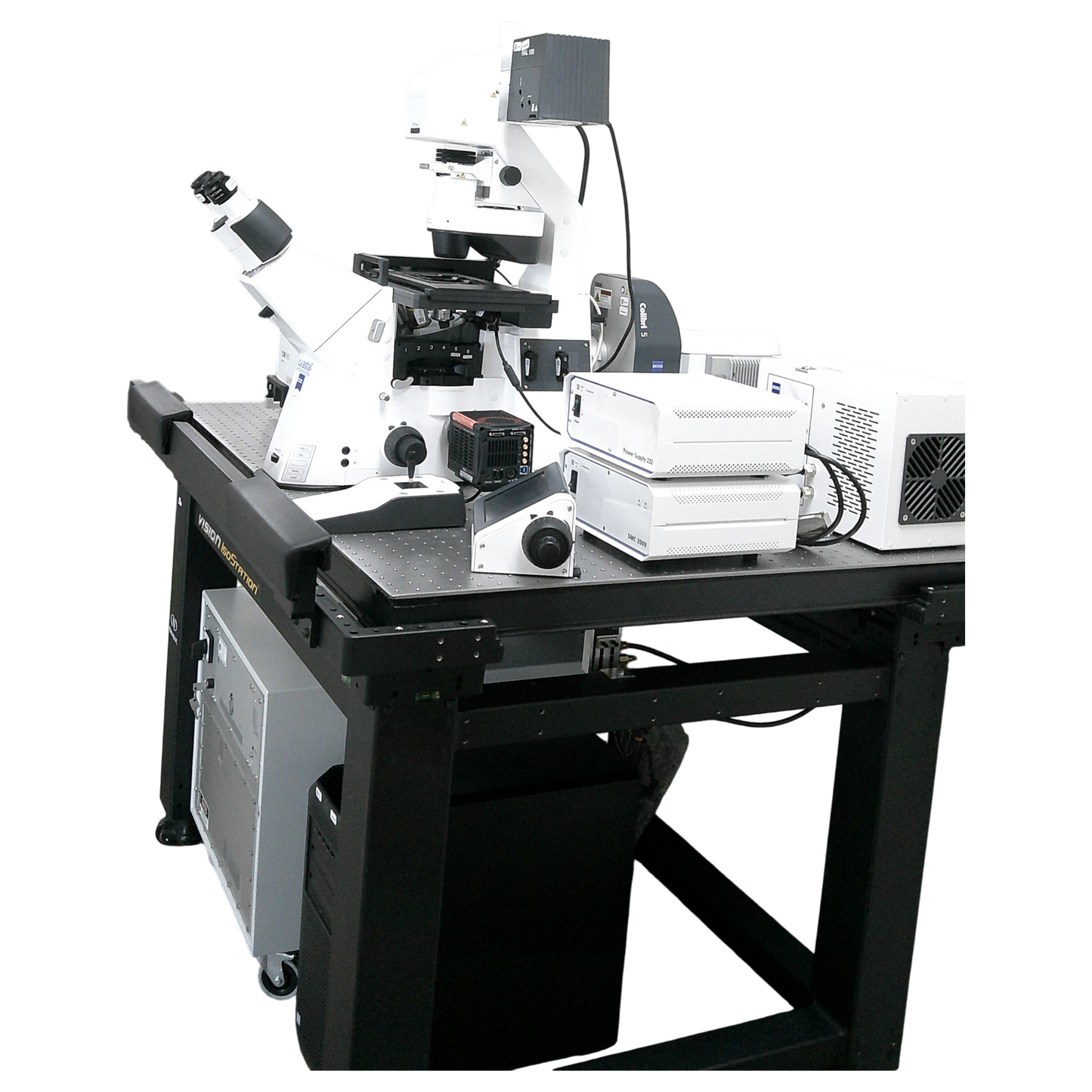

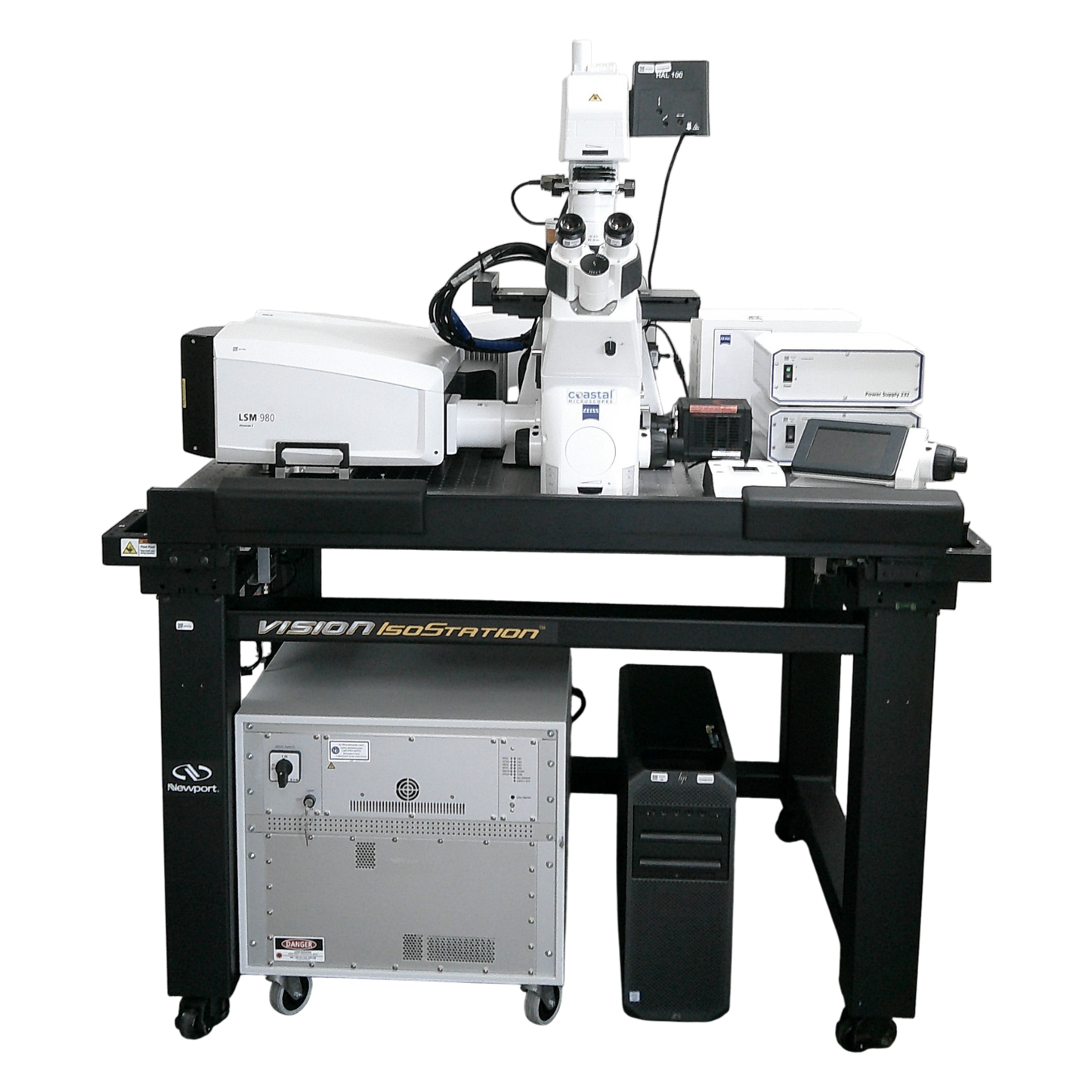

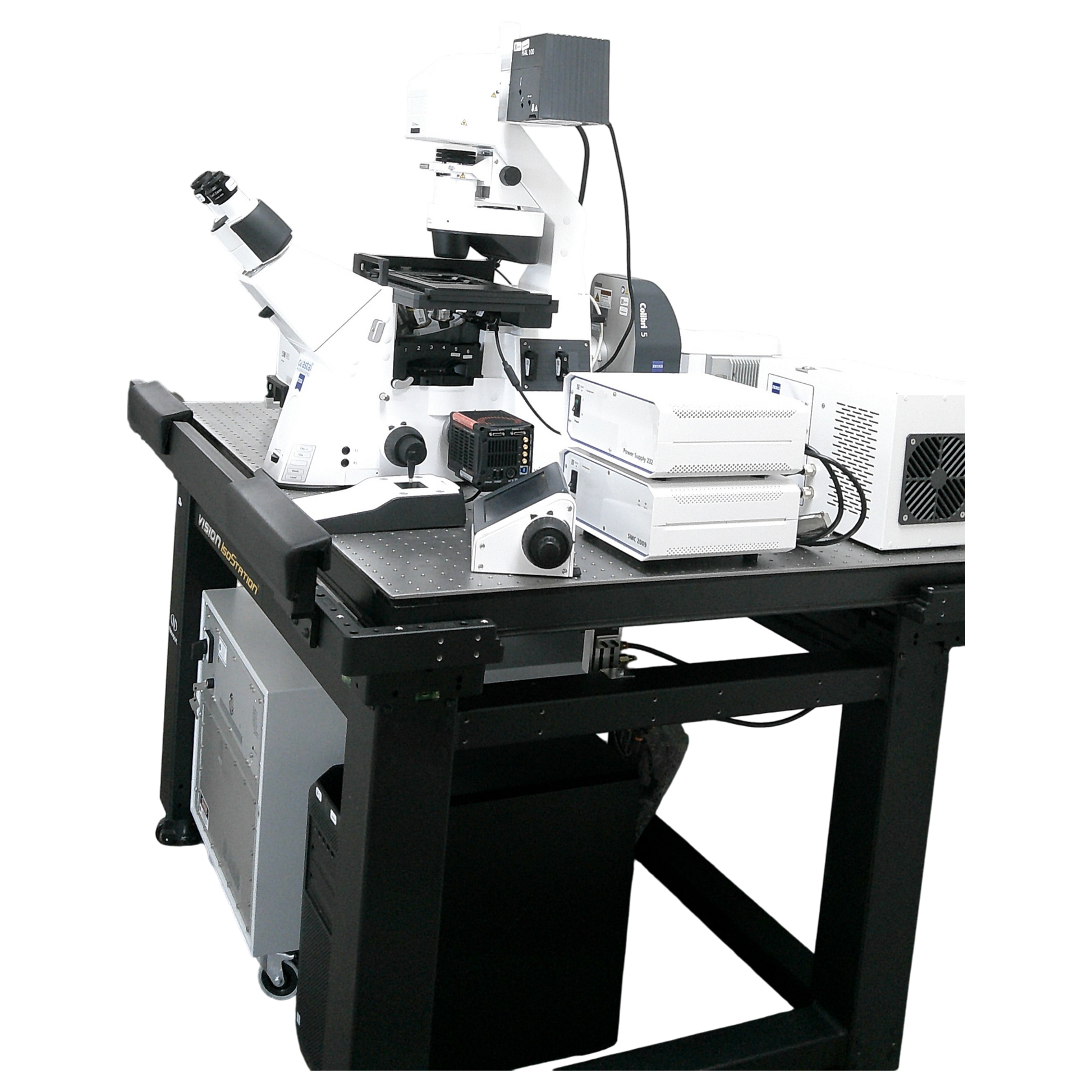

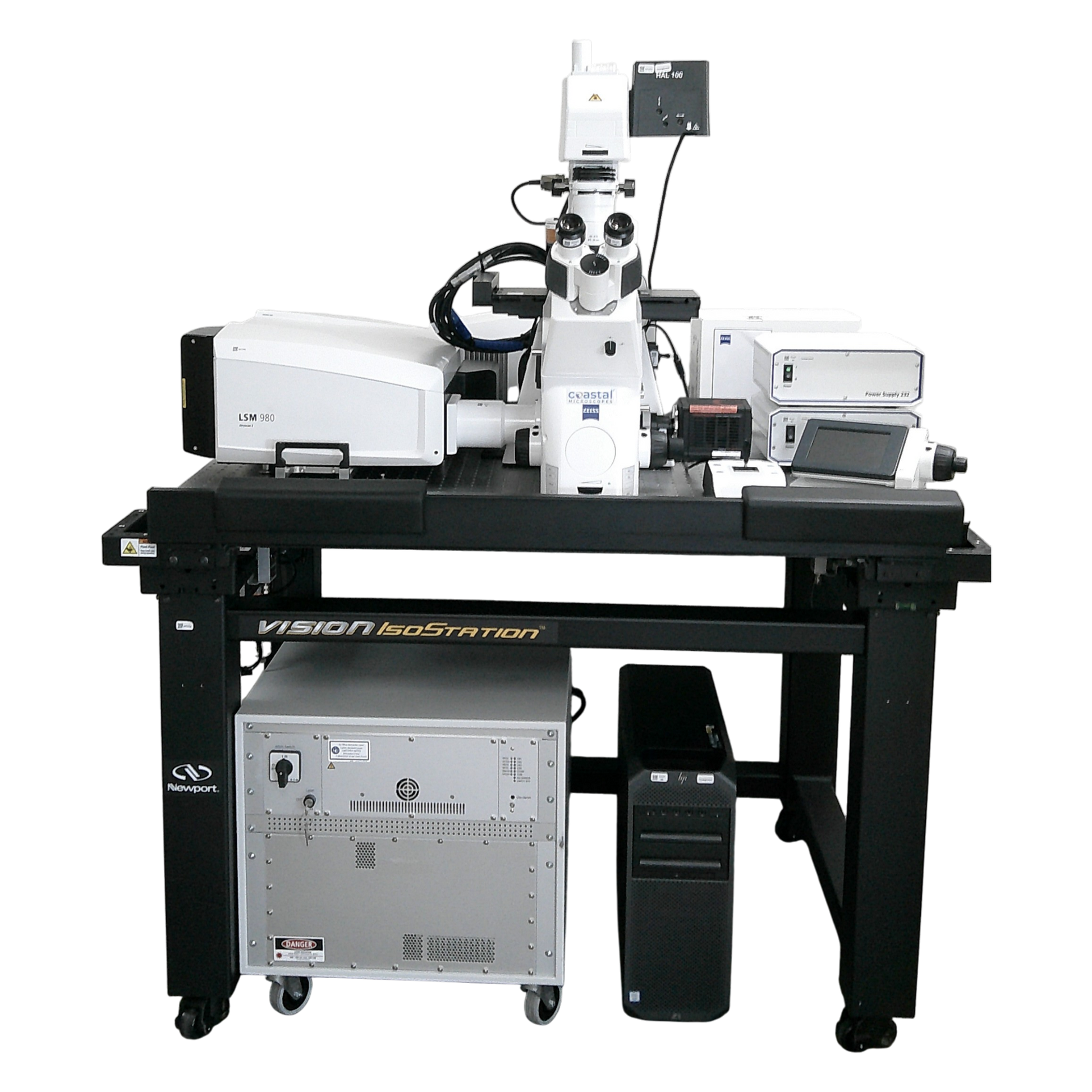

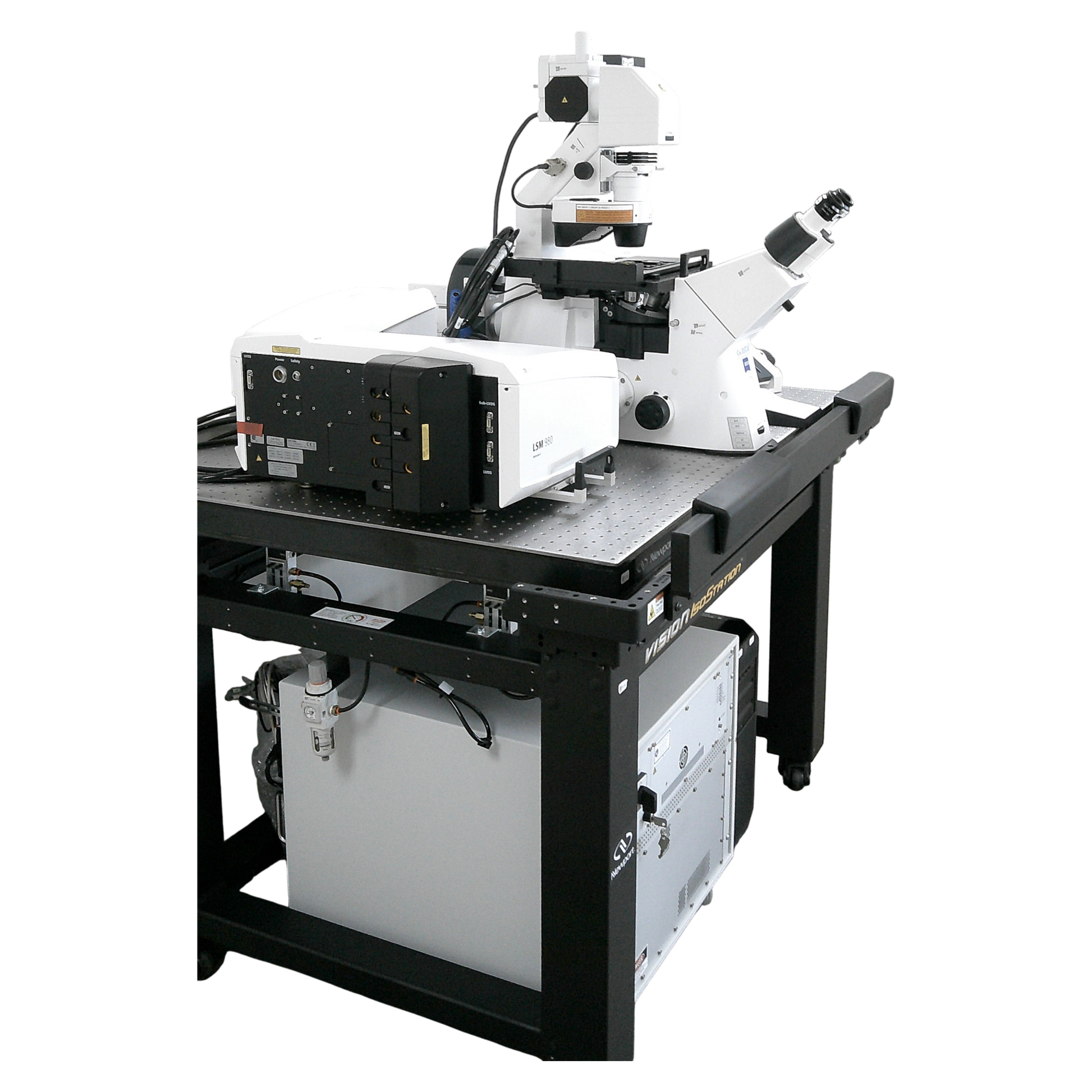

Zeiss LSM 980 Laser Scanning Confocal Airyscan 2 w/ Axio Observer 7 Inverted Phase Contrast Motorized Fluorescence Confocal

Zeiss LSM 980 Laser Scanning Confocal Microscope with Airyscan 2, Axio Observer 7, Motorized Fluorescence & Live Cell Imaging System

The Zeiss LSM 980 with Airyscan 2 is a high-performance laser scanning confocal imaging platform designed for advanced fluorescence imaging, live-cell microscopy, spectral detection, and super-resolution applications. Configured on the Axio Observer 7 inverted research microscope platform, this motorized system combines Airyscan 2 super-resolution detection, spectral imaging, and high-sensitivity GaAsP detection, with optional incubation, autofocus, and motorized stage control for demanding life science and materials research workflows.

This configuration includes the LSM 980 scan head, Airyscan 2 detector with 4Y mode, Axio Observer 7 motorized inverted microscope, fluorescence illumination, workstation, and monitor. The system has been professionally decommissioned and packed by Zeiss and is ready for installation and service contract support. We can assist with arranging Zeiss service contract coverage if desired.

Condition

Condition: Refurbished/Used (This product has been previously under service contract and is professionally packed by Zeiss)

Included Items

• Zeiss LSM 980 Laser Scanning Confocal Scan Head
• Zeiss Airyscan 2 Super-Resolution Detector with 4Y Mode
• Zeiss Axio Observer 7 Motorized Inverted Microscope
• ZEISS ZEN 3.1 Imaging & Analysis Software, with Software Modules:
  • ZEN Module Tiles/Positions
  • ZEN Module Photon Counting
  • ZEN Module Direct In-Line Processing
• USB Hardware License Dongle
• Spectral Detection Module: 2 PMT + 1 GaAsP
• Solid State Laser Launch with 405, 488, 561, and 639 nm Laser Lines
• Laser & Power Supply Rack
• XY Joystick Controller
• Colibri 5 RGB-UV LED Fluorescence Light Source
• Filter Set 90 HE LED
• HAL 100 12V/100W Halogen Illumination
• LSM Fluorescence Protection Shield
• Docking Station
• HP Z6 ZEISS Premium Workstation
• Intel Xeon Gold 6134 Processor, 192GB RAM, NVIDIA Quadro P4000 GPU
• Monitor
• Nosepiece: 6-Position Motorized Coded Nosepiece
• (3) Filter Cubes of your choice (Additional Cubes Available for purchase)

Available Options

• Objectives (Please discuss your application or preferred configuration with our team. We have a full suite of options available.)
• Stage: Motorized and Manual options available
• Zeiss Definite Focus Autofocus System
• Environmental Incubation System
• Optical Table: New and Refurbished options available

Illuminator (Choose One):

• 100w Mercury w/ Power Supply
• Upgrade to: Used Metal Halide
• Upgrade to: New X-Cite 110LED System with Adapter. Includes: X-Cite 110LED, speedDIAL remote, 3mm x 1500mm Liquid Light Guide
• Upgrade to: New X-Cite mini+ System. Includes: LED head, miniCUBE controller, speedDIAL remote, Microscope Coupling Flange
• Upgrade to: New X-Cite XYLIS II, XT730S w/1.5m LLG. Includes: X-Cite XYLIS (XT720S), speedDIAL remote, 3mm x 1500mm Liquid Light Guide

Key Features

• Airyscan 2 super-resolution imaging technology
• Simultaneous confocal and super-resolution acquisition
• High-sensitivity GaAsP spectral detection
• Motorized Axio Observer 7 research platform
• Multi-laser excitation for advanced fluorescence imaging
• Optional Definite Focus for drift-free, long-term time-lapse imaging
• Optional live-cell environmental incubation
• Spectral unmixing and multi-channel imaging
• Optional precision motorized XY stage with joystick control
• Integrated ZEN 3.1 acquisition and analysis suite
• Tile scanning, Z-stack, time lapse, and 3D imaging
• Integrated fluorescence and transmitted light imaging
• Airyscan enhanced sensitivity and resolution
• Workstation and monitor included

Applications

• Live-cell fluorescence imaging
• Super-resolution microscopy
• Confocal imaging
• Spectral imaging and unmixing
• Organoids and tissue sections
• FRAP and ROI-guided photostimulation
• Neuroscience research
• Cell biology
• Developmental biology
• Immunofluorescence
• High-resolution tissue imaging
• Time-lapse microscopy
• Colocalization studies
• Drug discovery and screening
• Materials science imaging

Specifications

Configuration shown is for demonstration purposes. Contact us to discuss your application and needs for a customized quote.
