SKU: PRODUCT ID:OBJ-000-329

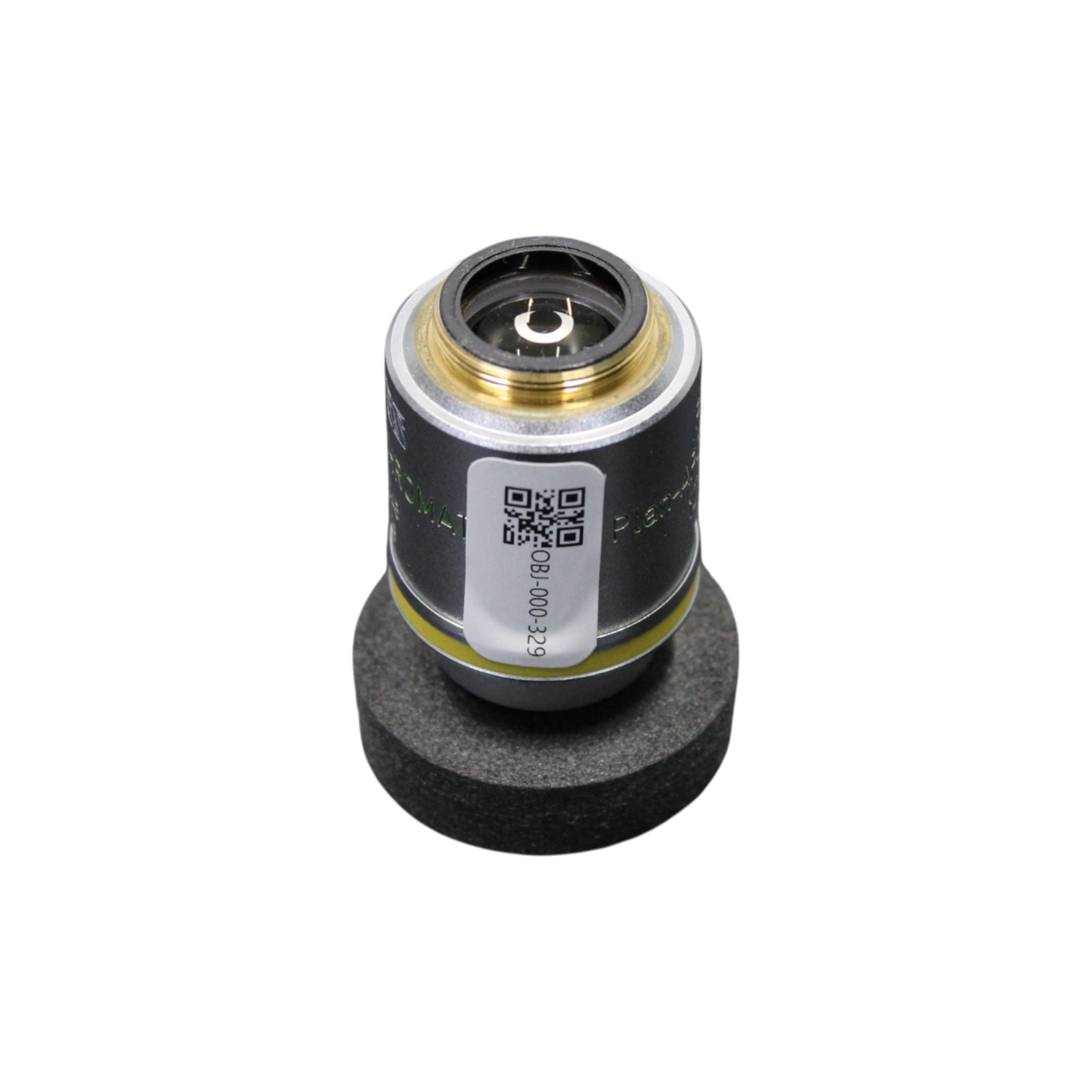

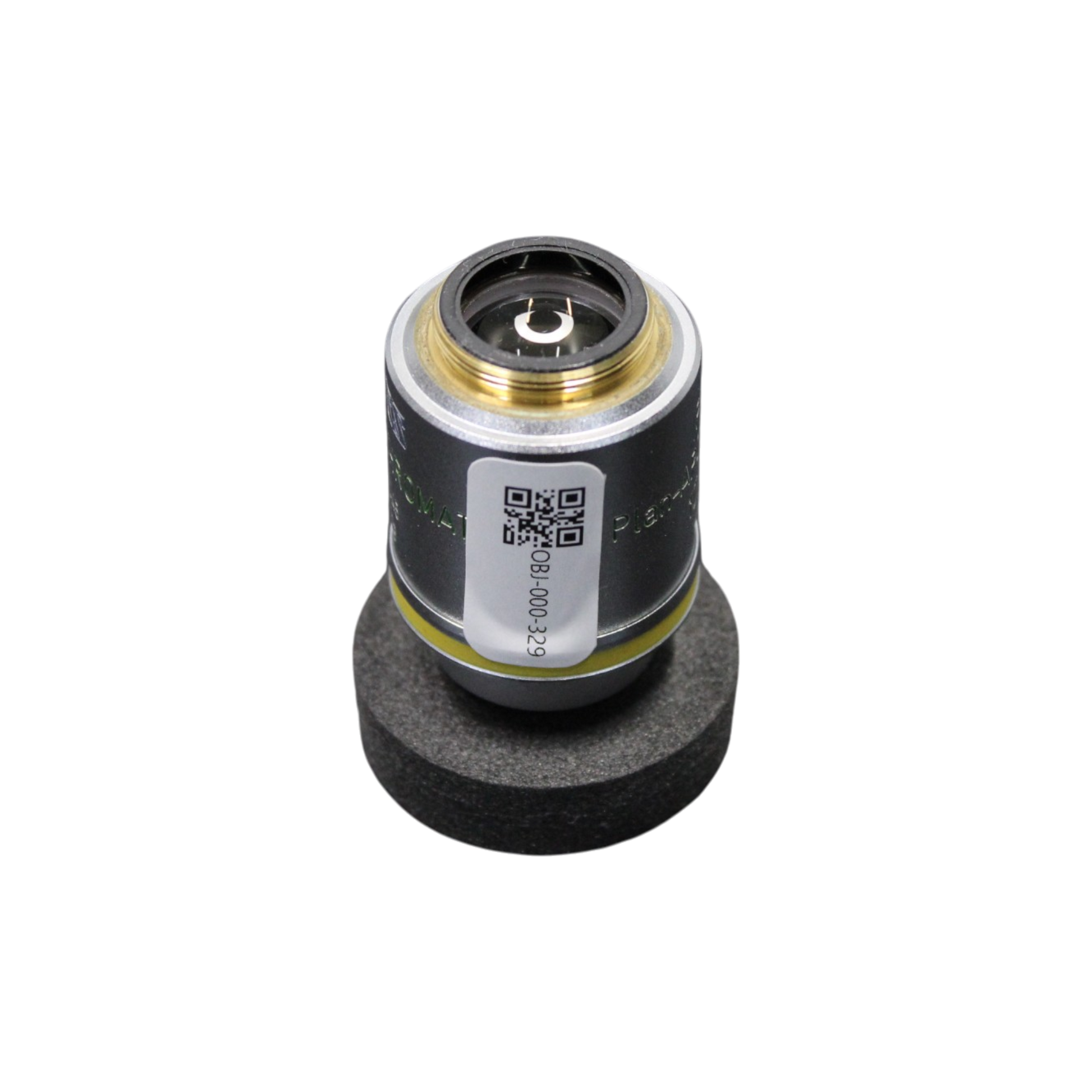

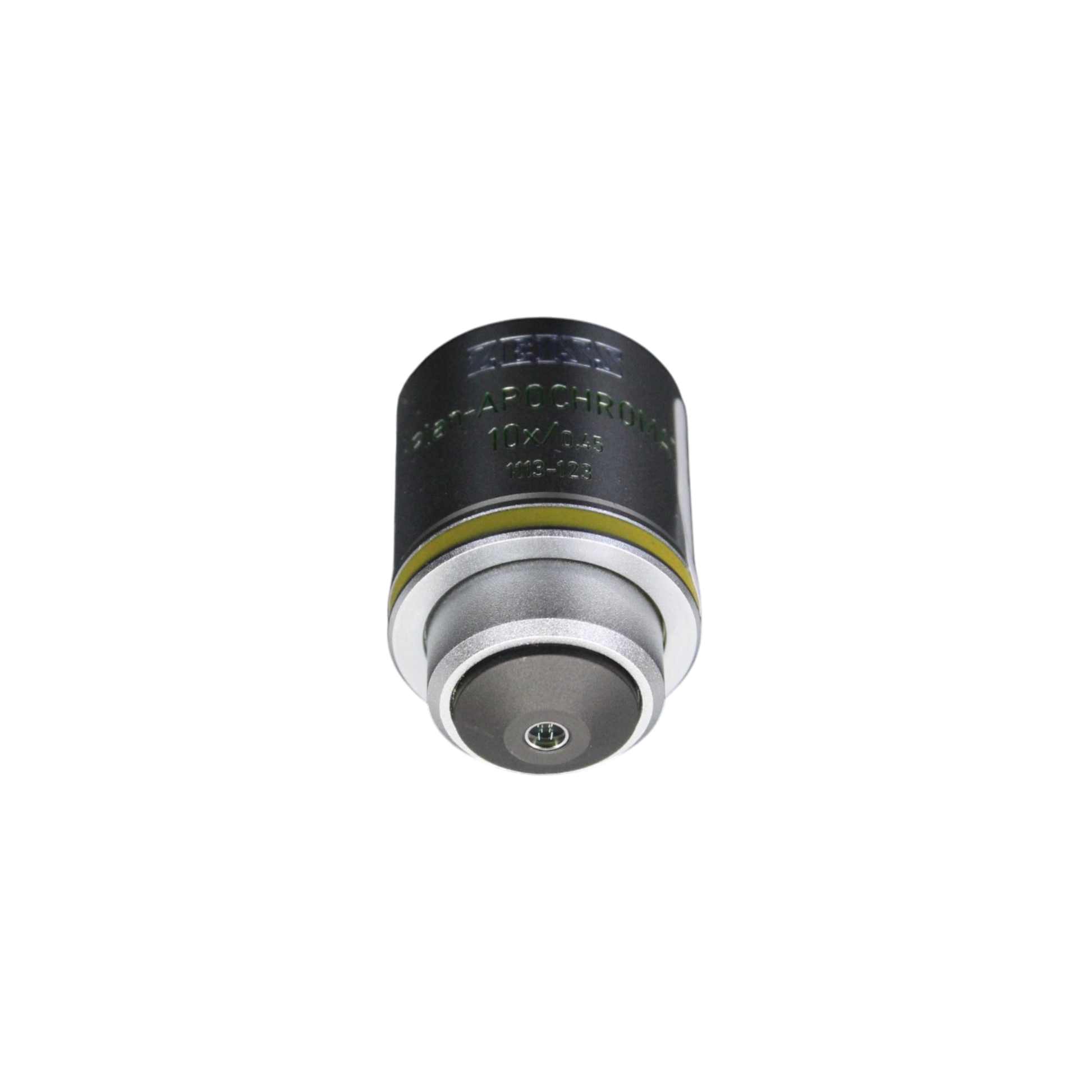

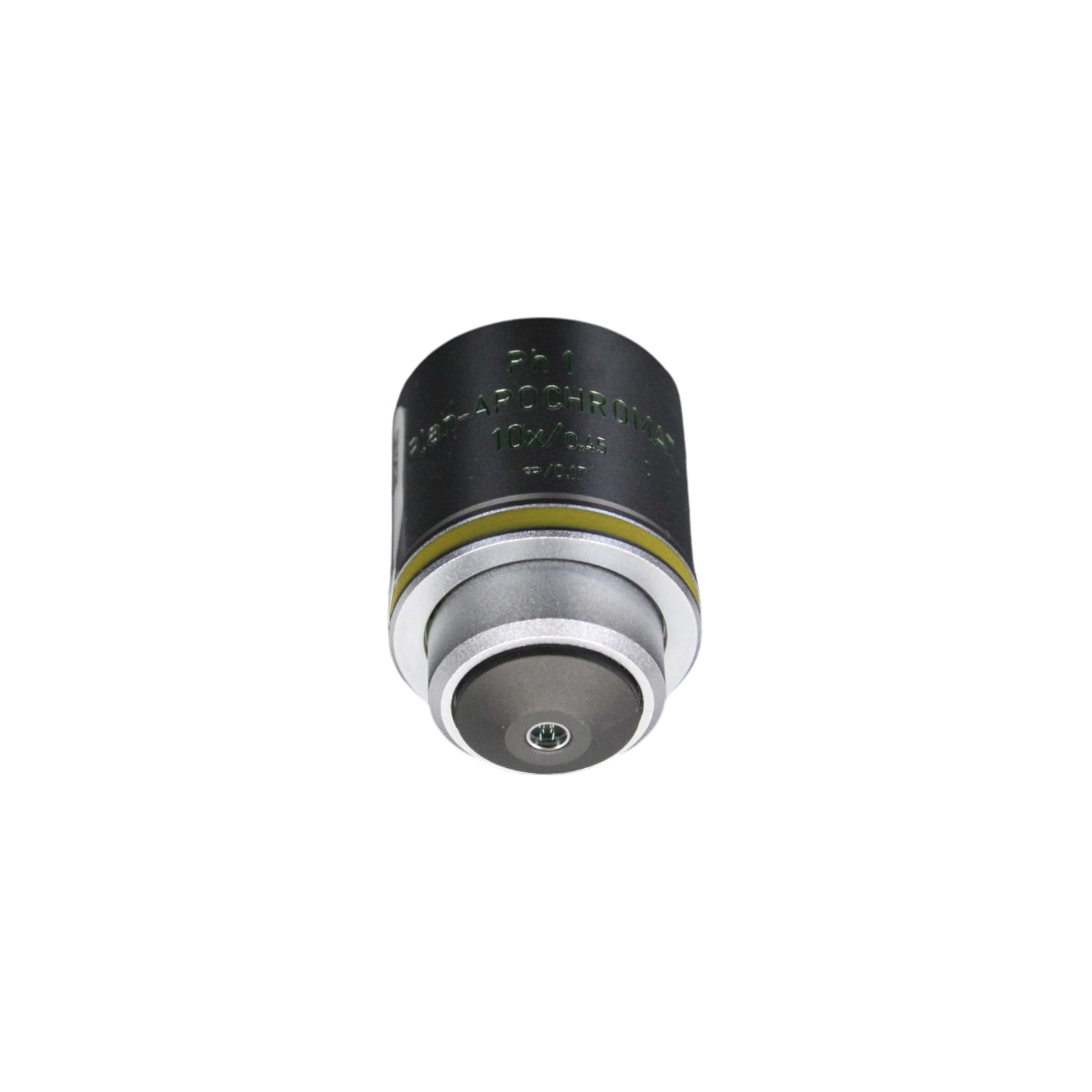

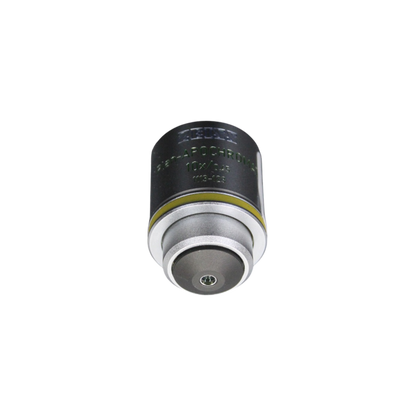

Zeiss Plan-Apochromat Ph1 10x/0.45 RMS Thread Size Microscope Objective
Zeiss Plan-Apochromat Ph1 10x/0.45 RMS Thread Size Microscope Objective
Couldn't load pickup availability
Zeiss Plan-Apochromat Ph1 10x/0.45 RMS Thread Size Objective – 1113-123 (Used/Refurbished)
The Zeiss Plan-Apochromat Ph1 10x/0.45 RMS is a high-performance objective lens designed for advanced microscopy applications. With a numerical aperture (NA) of 0.45 and a free working distance of 2.0 mm, it provides exceptional resolution and clarity for brightfield, phase contrast, and fluorescence microscopy.
Condition
- Used / Refurbished
- (This product has been inspected and verified to meet manufacturer specifications.)
Key Features
- Magnification: 10x
- Numerical Aperture (NA): 0.45
- Free Working Distance: 2.0 mm
- Cover Glass Thickness: 0.17 mm
- Thread Type: RMS (W0.8x1/36")
- Dry Objective (No Immersion Required)
- Apochromatic (APO) Correction: Provides superior color correction and image flatness
- Infinity Color Corrected System (ICS): Ensures compatibility with modern microscope systems
Applications
- Brightfield microscopy
- Phase contrast microscopy
- Fluorescence microscopy
- Biomedical research
- Material science
Specifications
| Feature | Details |
|---|---|
| Manufacturer | Zeiss |
| Model | Plan-Apochromat Ph1 10x/0.45 RMS |
| Catalog Number | 1113-123 |
| Magnification | 10x |
| Numerical Aperture (NA) | 0.45 |
| Free Working Distance | 2.0 mm |
| Cover Glass Thickness | 0.17 mm |
| Thread Size | RMS (W0.8x1/36") |
| Immersion Medium | None (Dry) |
| Field of View | 25 mm |
| Parfocal Length | 45.06 mm |
| Optical System | Infinity Color Corrected System (ICS) |
| Color Correction | Apochromatic (APO) |
| Application | Brightfield, Phase Contrast, Fluorescence Microscopy, Biomedical Research, Material Science |
Additional Details
Additional Details
- Manufacturer: Zeiss
- Model: Plan-Apochromat Ph1 10x/0.45 RMS Thread Size
- Catalog Number: OBJ-000-329
- Serial Number: N/A
- Condition: Seller Refurbished
