Zeiss Plan-Neofluar 2.5x/0.075 RMS Thread Size Microscope Objective
Zeiss Plan-Neofluar 2.5x/0.075 RMS Thread Size Microscope Objective
Couldn't load pickup availability
- ✓ Tested in house. 30-day warranty
- ✓ Typical delivery in 1 to 3 weeks, depending on parts
- ✓ Prices shown exclude freight, insurance, tariffs and applicable taxes
- ✓ Installation, training and service available from our engineers (quoted separately)
- ✓ SAM.gov registered (CAGE 10ZU5). Purchase orders welcome
- ✓ Leasing and finance companies available
Questions? Call (877) 564-2767 or email sales@coastalmicroscopes.com
Overview

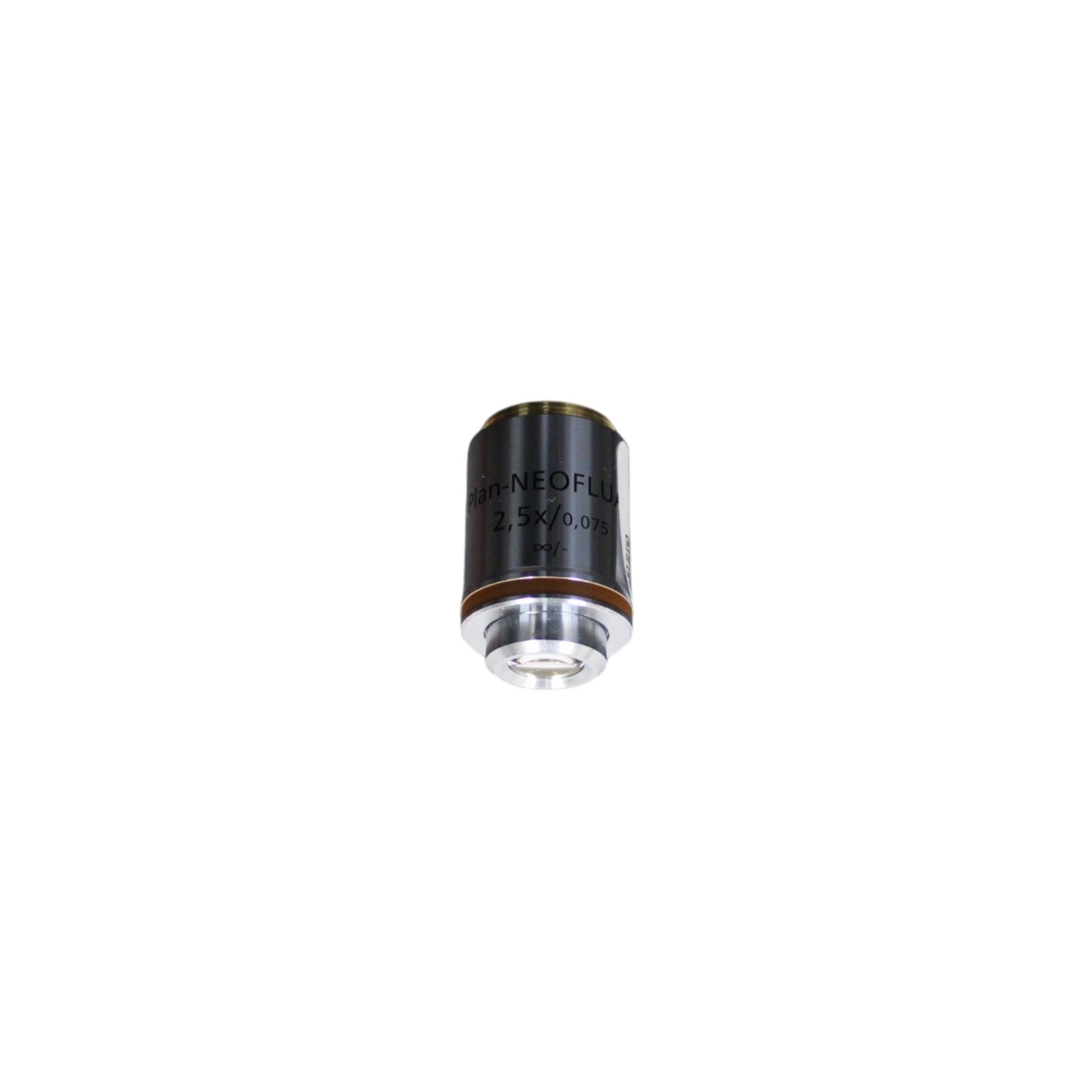

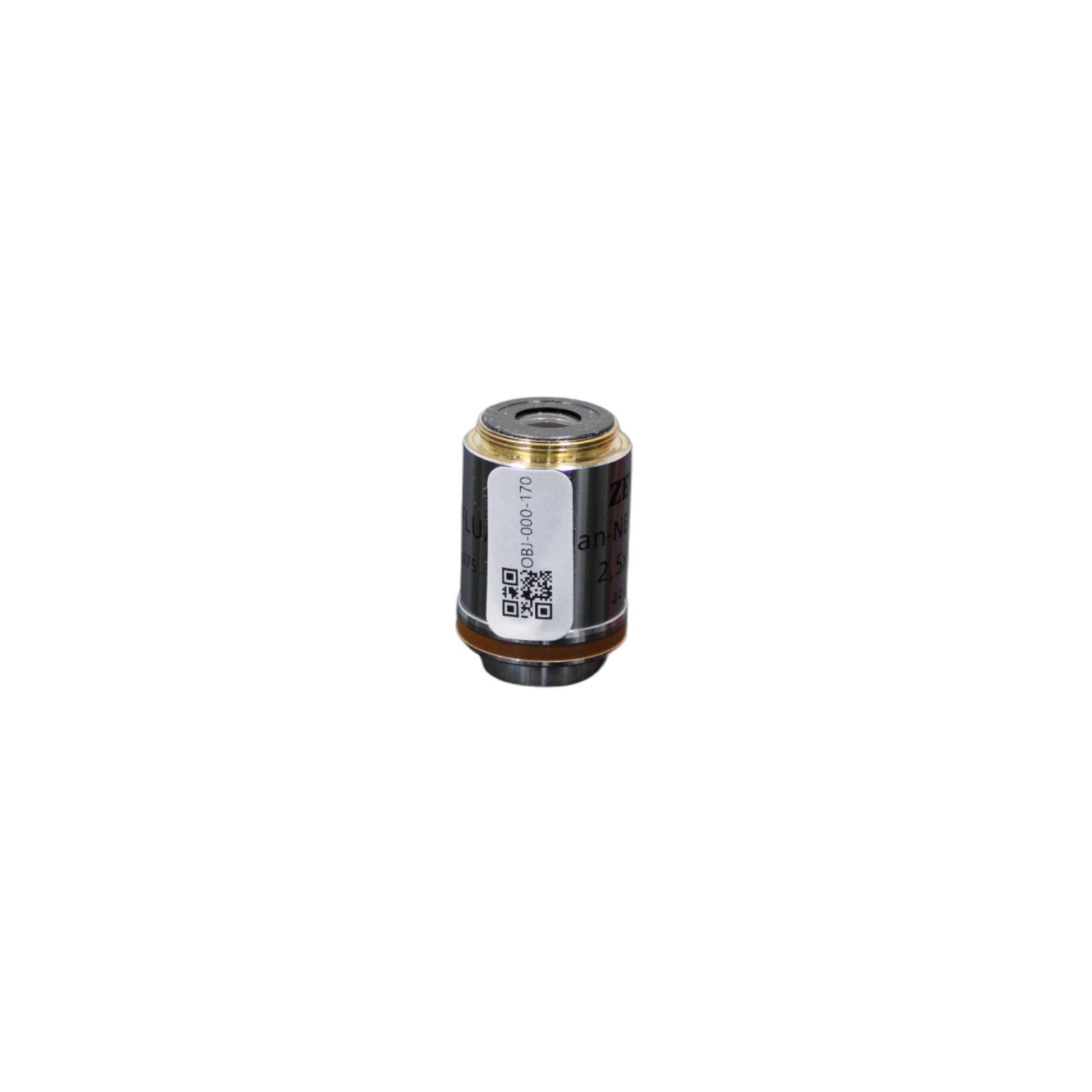

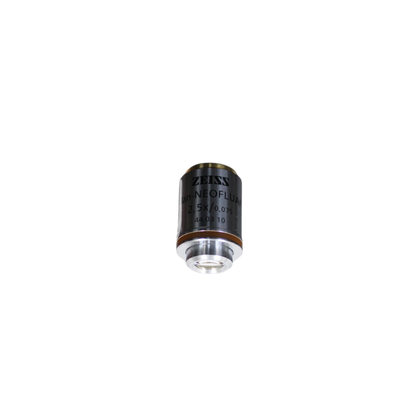

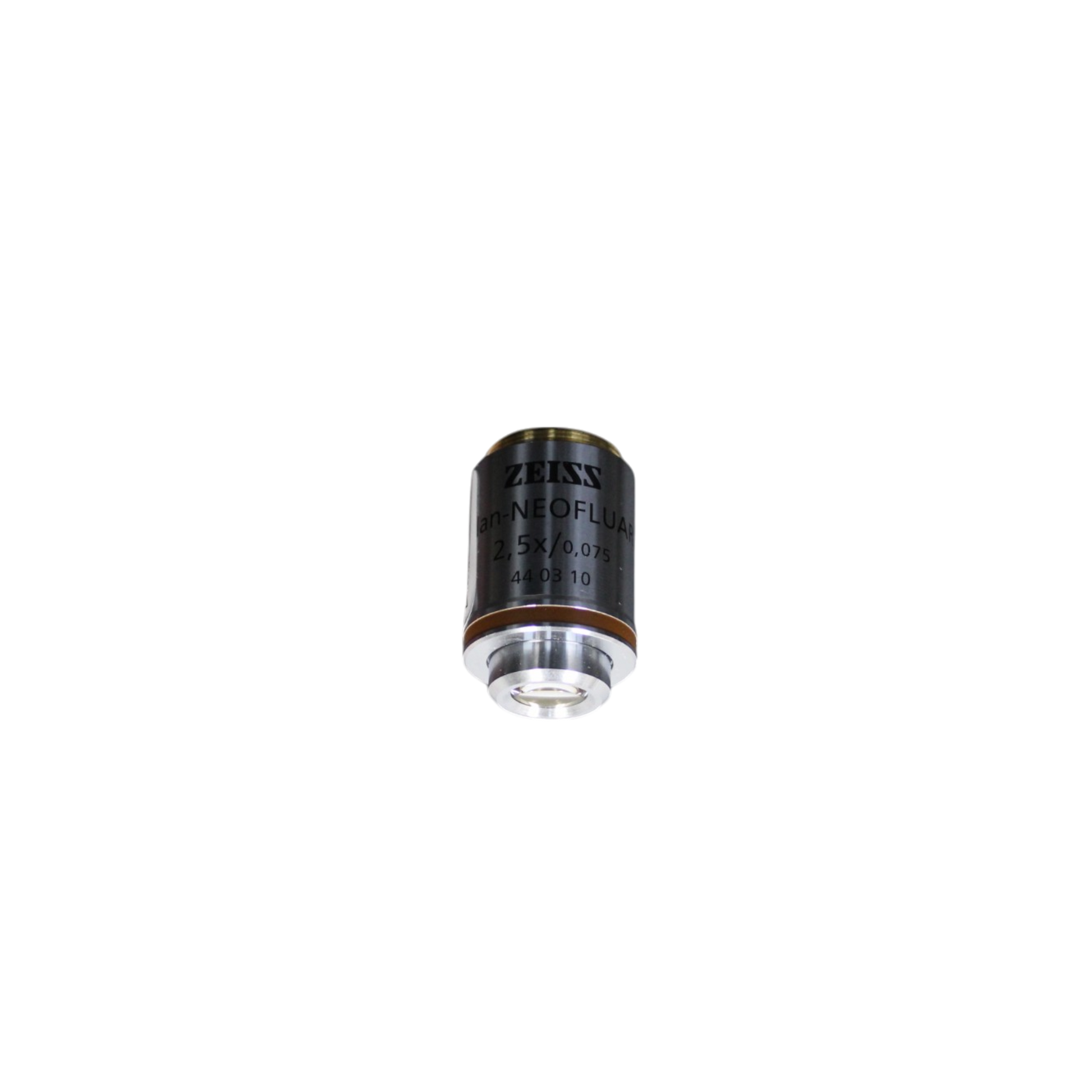

The Zeiss Plan-Neofluar 2.5x/0.075 objective delivers exceptional clarity and a wide field of view, ideal for low-magnification scanning and sample navigation. With its flat-field Plan-Neofluar optical design and RMS thread compatibility, this dry objective is suitable for a range of routine and advanced brightfield applications on upright microscopes.
Condition
Condition: Refurbished/Used (This product has been inspected and verified to meet manufacturer specifications).
Key Features
- 2.5x magnification for wide-area specimen scanning
- 0.075 Numerical Aperture (NA) for excellent depth of field and field coverage
- Plan-Neofluar optics for superior flatness and contrast
- RMS thread for compatibility with standard upright microscope systems
- Dry objective—no immersion medium required
- Excellent performance in brightfield and transmitted light imaging
Applications
- Low-power specimen overview
- Histological slide scanning
- Sample alignment and region targeting
- Routine and research-level brightfield imaging
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Zeiss |
| Model | Plan-Neofluar 2.5x/0.075 |
| Catalog Number | 44 03 10 |
| Magnification | 2.5x |
| Numerical Aperture (NA) | 0.075 |
| Optical Design | Plan-Neofluar |
| Thread Type | RMS |
| Immersion | Dry |
| Microscope Compatibility | Zeiss and other RMS-compatible upright microscopes |
Additional Details
Additional Details
- Manufacturer: Zeiss
- Model: Plan-Neofluar 2.5x/0.075 RMS Thread Size
- Catalog Number: OBJ-000-170
- Serial Number: N/A
- Condition: Seller Refurbished
