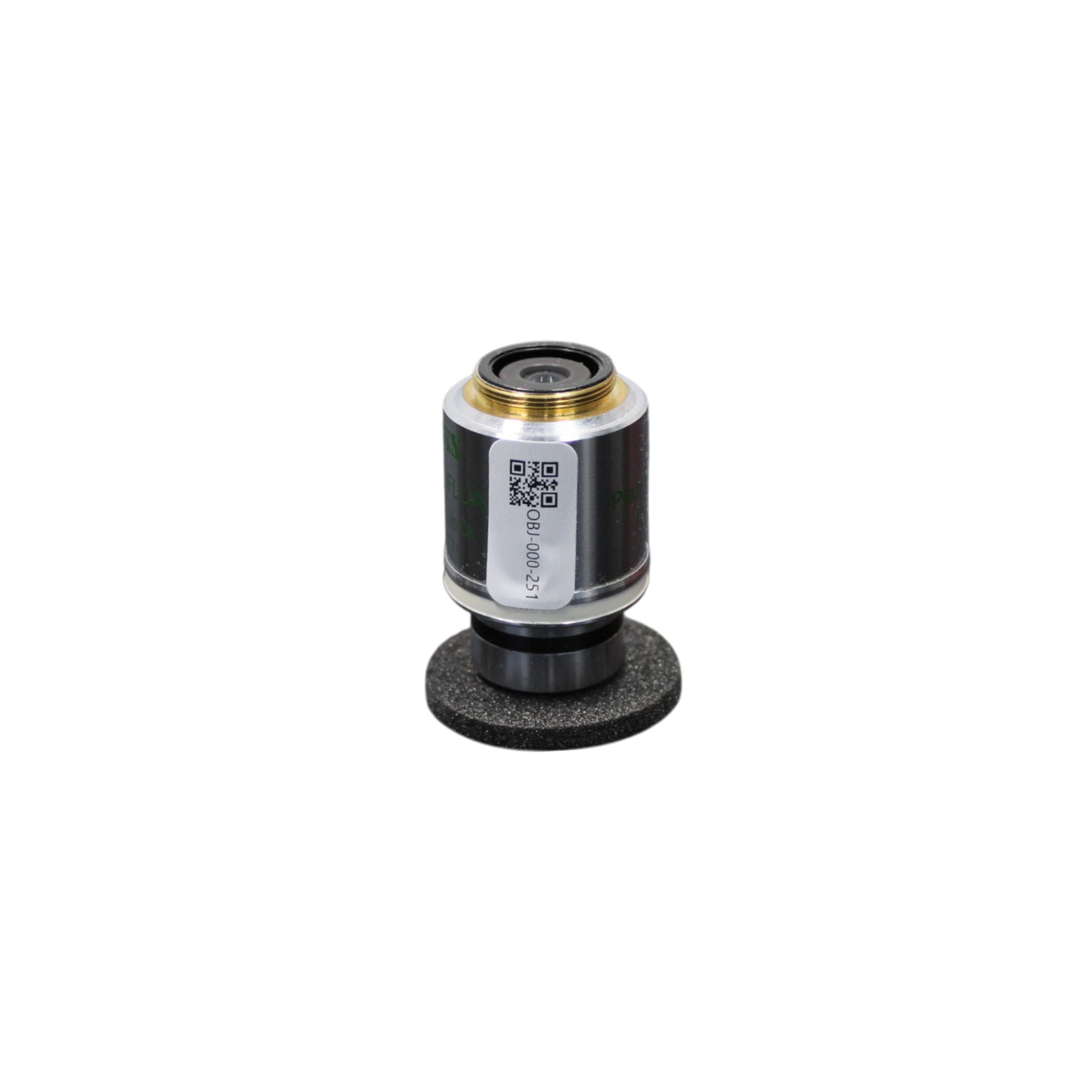

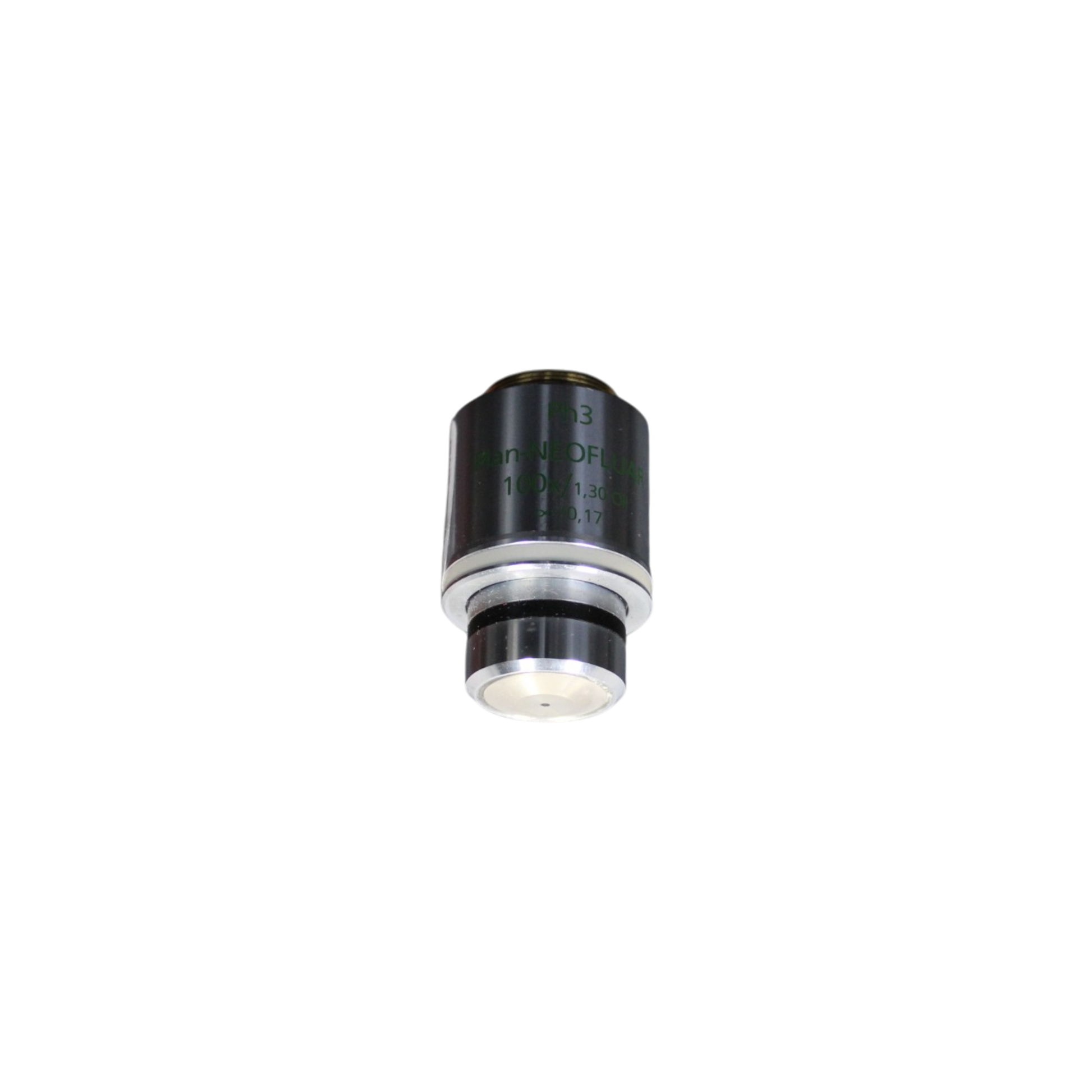

Zeiss Plan-Neofluar Ph3 100x/1.3 Oil RMS Thread Size Microscope Objective
Zeiss Plan-Neofluar Ph3 100x/1.3 Oil RMS Thread Size Microscope Objective
Couldn't load pickup availability
- ✓ Tested in house. 30-day warranty
- ✓ Typical delivery in 1 to 3 weeks, depending on parts
- ✓ Prices shown exclude freight, insurance, tariffs and applicable taxes
- ✓ Installation, training and service available from our engineers (quoted separately)
- ✓ SAM.gov registered (CAGE 10ZU5). Purchase orders welcome
- ✓ Leasing and finance companies available
Questions? Call (877) 564-2767 or email sales@coastalmicroscopes.com
Zeiss Plan-Neofluar Ph3 100x/1.3 Oil RMS Thread Size Objective – 1031-171 (Used/Refurbished)
The Zeiss Plan-Neofluar Ph3 100x/1.3 Oil RMS is a high-quality objective lens designed for advanced microscopy applications. With a numerical aperture (NA) of 1.3 and optimized for phase contrast (Ph3), it offers exceptional resolution and contrast for brightfield, phase contrast, and biomedical microscopy.
Condition
- Used / Refurbished
- (This product has been inspected and verified to meet manufacturer specifications.)
Key Features
- Magnification: 100x
- Numerical Aperture (NA): 1.3
- Free Working Distance: 0.17 mm
- Cover Glass Thickness: 0.17 mm
- Thread Type: RMS (Royal Microscopical Society) Standard
- Immersion Method: Oil
- Phase Contrast: Ph3 ring for enhanced contrast in transparent specimens
- Color Correction: Semi-apochromatic
- Infinity Corrected Optical System: Ensures compatibility with modern microscope systems
Applications
- Brightfield microscopy
- Phase contrast microscopy
- Biomedical research
- Cell biology
- Histology
Specifications
| Feature | Details |
|---|---|
| Manufacturer | Zeiss |
| Model | Plan-Neofluar Ph3 100x/1.3 Oil RMS |
| Catalog Number | 1031-171 |
| Magnification | 100x |
| Numerical Aperture (NA) | 1.3 |
| Free Working Distance | 0.17 mm |
| Cover Glass Thickness | 0.17 mm |
| Thread Size | RMS (W0.8x1/36") |
| Immersion Medium | Oil |
| Phase Contrast Ring | Ph3 |
| Field of View | 25 mm |
| Parfocal Length | 45.06 mm |
| Optical System | Infinity Corrected |
| Color Correction | Semi-apochromatic |
| Application | Brightfield, Phase Contrast, Biomedical Research, Cell Biology, Histology |
Additional Details
Additional Details
- Manufacturer: Zeiss
- Model: Plan-Neofluar Ph3 100x/1.3 Oil RMS Thread Size
- Catalog Number: OBJ-000-251
- Serial Number: N/A
- Condition: Seller Refurbished
